Lensagon TDC-0138-184

Standard Double Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.138x, WD 184mm, F# 7.3, NA 0.0094, DOF 30700um, Opt.Dist. 0.05

 Compare
SKU: 10026 Category:

Product Description

The Double Side Telecentric Lens TDC-0138-184 is suitable for sensors with an image format of 2/3 inch.

Magnification 0.138 x
Working Distance (WD) 184 mm
Depth of Field (DOF) 30.7 mm @ 40 μm
Resolution (Object Side) 36 μm
Image Format (max.) 2/3 inch
Working F-Number 7.3
Numerical Aperture (NA) 0.0094
Field of View (FOV) 63.76mm x 47.82mm @2/3″
Telecentric Type Double Side
Telecentricity 0.05 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

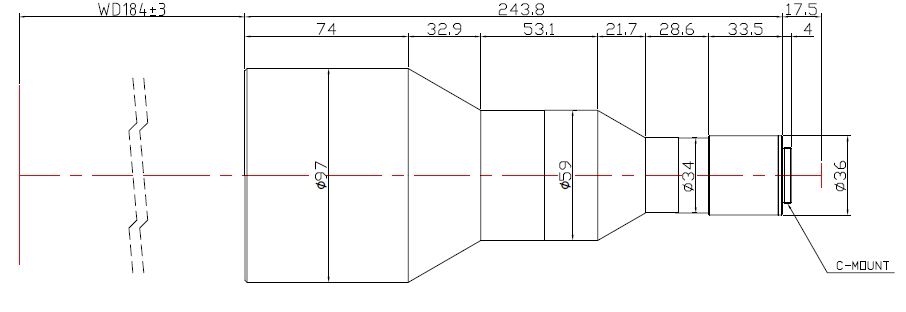

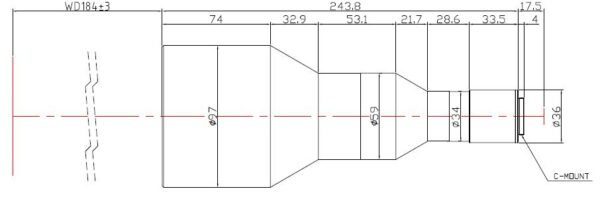

Drawing
