Lensagon TC4MHR-0312-130I

High Res Object Side Telecentric Lens for 1 inch sensor, Magnification: 0.312x, WD 130mm, F# 3.3, NA 0.0465, DOF 1500um, Opt.Dist. 0.03

 Compare
SKU: 10038 Category:

Product Description

The Object Side Telecentric Lens TC4MHR-0312-130I is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.312 x
Working Distance (WD) 130 mm
Depth of Field (DOF) 1.5 mm @ 22 μm
Resolution (Object Side) 7.2 μm
Image Format (max.) 1 inch
Megapixel (max.) 4 MP
Working F-Number 3.3
Numerical Aperture (NA) 0.0465
Field of View (FOV) 36.1mm x 36.1mm
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

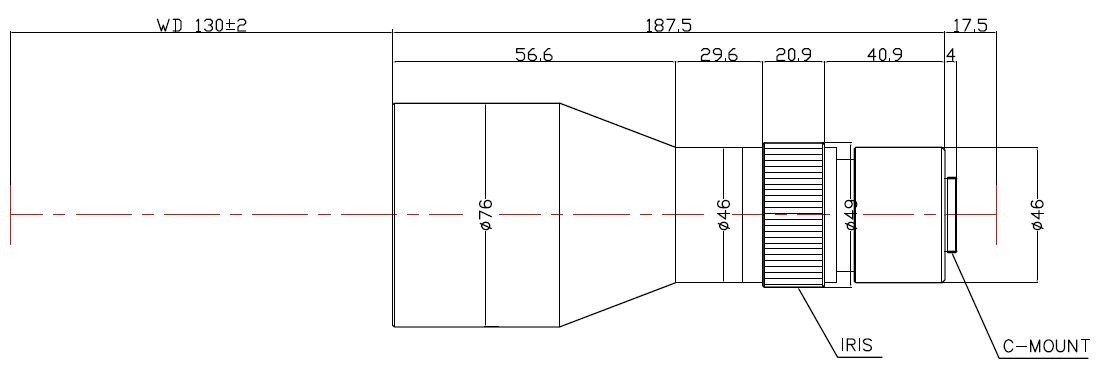

Drawing
