Lensagon TF8MHR-20-50C

Super High Res Object Side Telecentric Lens for 8M (23mm) sensor, Magnification: 2x, WD 50mm, F# 8.93, NA 0.112, DOF 98.2um, Opt.Dist. 0.04, Coaxial Version

 Compare
SKU: 10665 Category:

Product Description

The Object Side Telecentric Lens TF8MHR-20-50C is suitable for sensors up to 8 megapixel and with an image format of 8M (23mm).

Magnification 2 x
Mount F-Mount *
Working F-Number 8.93
Working Distance (WD) 50 mm
Depth of Field (DOF) 98.2 μm
Resolution (Object Side) 3 μm
Numerical Aperture (NA) 0.112
Image Format (max.) 8M (23mm)
Megapixel (max.) 8 MP
Field of View (FOV) 9.1mm x 6.8mm @8M CCD
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.04 %
Special Feature Super High Res

* Other mounts are available on request.

pdf

Additional Information

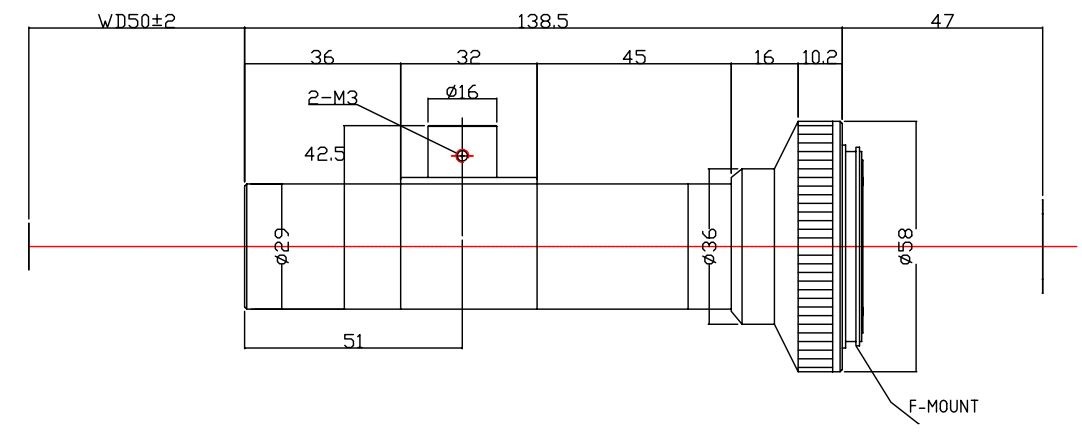

Drawing
