Lensagon TC4MHR-22-40

Lensagon TC4MHR-22-40

High Res Object Side Telecentric Lens for 1 inch sensor, Magnification: 2.2x, WD 40mm, F# 8.9, NA 0.123, DOF 80.9um, Opt.Dist. 0.02

 Compare
SKU: 10221 Category:

Product Description

The Object Side Telecentric Lens TC4MHR-22-40 is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification2.2 x
Working Distance (WD)40 mm
Depth of Field (DOF)80.9 μm @ 22 μm
Resolution (Object Side)2.72 μm
Image Format (max.)1 inch
Megapixel (max.)4 MP
Working F-Number8.9
Numerical Aperture (NA)0.123
Field of View (FOV)5.1mm x 5.1mm
Telecentric TypeObject Side
Telecentricity0.03 °
Optical Distortion (max.)0.02 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

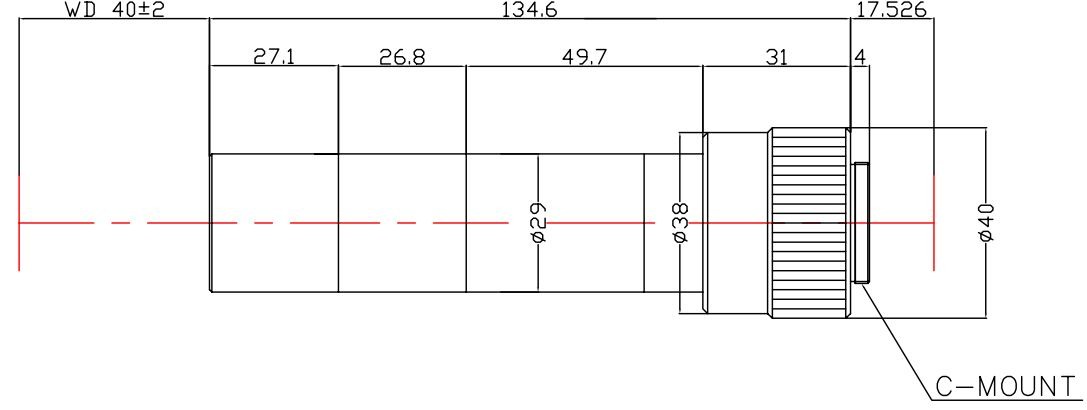

Drawing
