Lensagon TC5M-10-110C

Lensagon TC5M-10-110C

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 1x, WD 110mm, F# 6.5, NA 0.077, DOF 260um, Opt.Dist. 0.01, Coaxial Version

 Compare
SKU: 10506 Category:

Product Description

The Object Side Telecentric Lens TC5M-10-110C is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification1
MountC-Mount
Aperture6.5
Working Distance (WD)110 mm
Depth of Field (DOF)260 μm
Resolution (Object Side)4.36 μm
Numerical Aperture (NA)0.077
Image Format (max.)2/3 inch
Megapixel5
Field of View (FOV)8.47mm x 7.1mm@5M CCD
Lens TypeObject Side
Telecentricity0.025
Optical Distortion (max.)0.01 %
Special FeatureSuper High Res
pdf

Additional Information

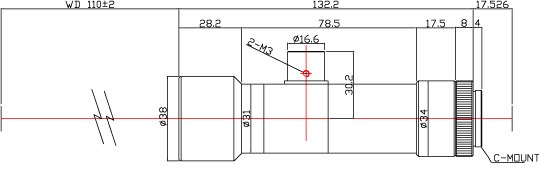

Technical Drawing:

Drawing
