Lensagon TC4MHR-22-40C

High Res Object Side Telecentric Lens for 1 inch sensor, Magnification: 2.2x, WD 40mm, F# 8.9, NA 0.123, DOF 80.9um, Opt.Dist. 0.02, Coaxial Version

 Compare
SKU: 10222 Category:

Product Description

The Object Side Telecentric Lens TC4MHR-22-40C is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification2.2
MountC-Mount
Aperture8.9
Working Distance (WD)40 mm
Depth of Field (DOF)80.9 μm
Resolution (Object Side)2.72 μm
Numerical Aperture (NA)0.123
Image Format (max.)1 inch
Megapixel4
Field of View (FOV)5.1mm X 5.1mm@4M CCD
Lens TypeObject Side
Telecentricity0.03
Optical Distortion (max.)0.02 %
Special FeatureHigh Res
pdf

Additional Information

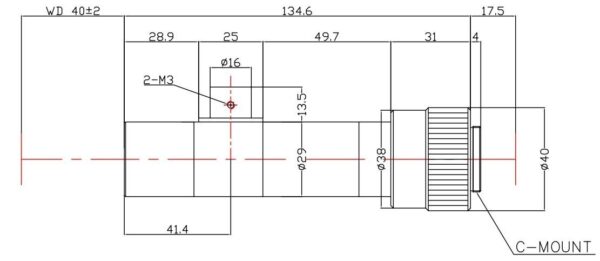

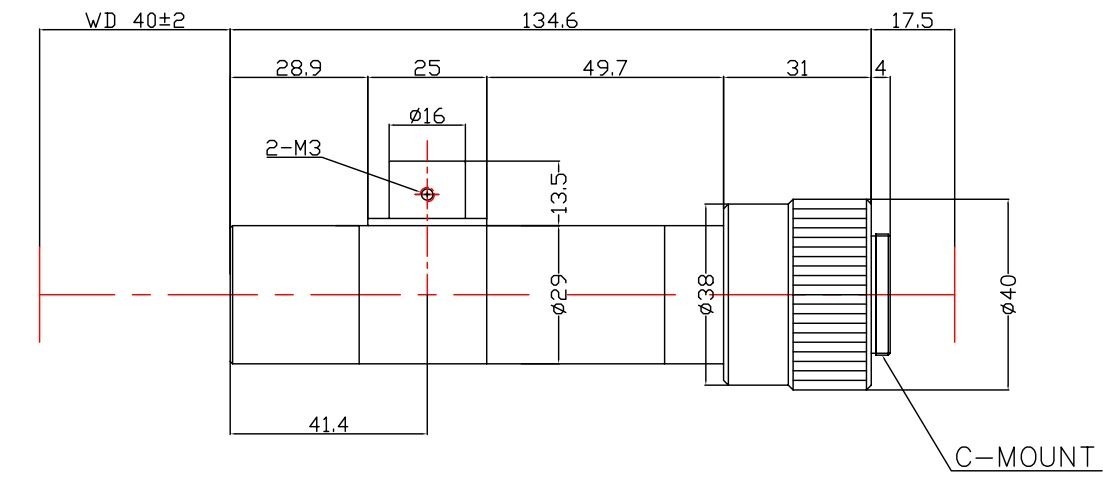

Technical Drawing:

Drawing
