Lensagon T25M-033-347I
Super High Res Object Side Telecentric Lens for 32mm (diagonal) sensor, Magnification: 0.33x, WD 347mm, F# 8.25, NA 0.02, DOF 2700um, Opt.Dist. 0.02
Product Description
The Object Side Telecentric Lens T25M-033-347I is suitable for sensors up to 25 megapixel and with an image format of 32mm (diagonal).
Magnification | 0.33 x |
---|---|
Working Distance (WD) | 347.00 mm |
Depth of Field (DOF) | 2.7 mm @ 18.00 μm |
Resolution (Object Side) | 16.80 μm |
Image Format (max.) | 32mm (diagonal) |
Megapixel (max.) | 25.00 MP |
Working F-Number | 8.25 |
Numerical Aperture (NA) | 0.02 |
Field of View (FOV) | 68.8mm x 68.8mm |
Telecentric Type | Object Side |
Telecentricity | 0.03 ° |
Optical Distortion (max.) | 0.02 % |
Mount | M48 * |
* Other mounts are available on request.
![pdf](http://www.lensation.de/pdf/pdf.jpg)
Additional Information

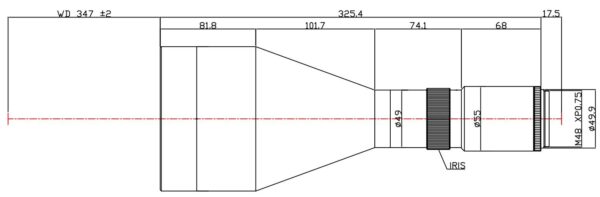

![Drawing](https://www.lensation.de/drawings/T25M-033-347I_DW1.jpg)
Lensagon T25M-033-347I
Standard Object Side Telecentric Lens for 32mm (diagonal) sensor, Magnification: 0.33x, WD 347mm, F# 8.25, NA 0.02, DOF 2700um, Opt.Dist. 0.02
Product Description
The Object Side Telecentric Lens T25M-033-347I is suitable for sensors up to 25 megapixel and with an image format of 32mm (diagonal).
Magnification | 0.33 x |
---|---|
Working Distance (WD) | 347.00 mm |
Depth of Field (DOF) | 2.7 mm |
Resolution (Object Side) | 16.80 μm |
Image Format (max.) | 32mm (diagonal) |
Megapixel (max.) | 25.00 MP |
Working F-Number | 8.25 |
Numerical Aperture (NA) | 0.02 |
Field of View (FOV) | 68.8mm x 68.8mm @25M CCD |
Telecentric Type | Object Side |
Telecentricity | 0.03 ° |
Optical Distortion (max.) | 0.02 % |
Mount | M48 * |
Special Feature | Standard |
* Other mounts are available on request.
![pdf](http://www.lensation.de/pdf/pdf.jpg)
Additional Information

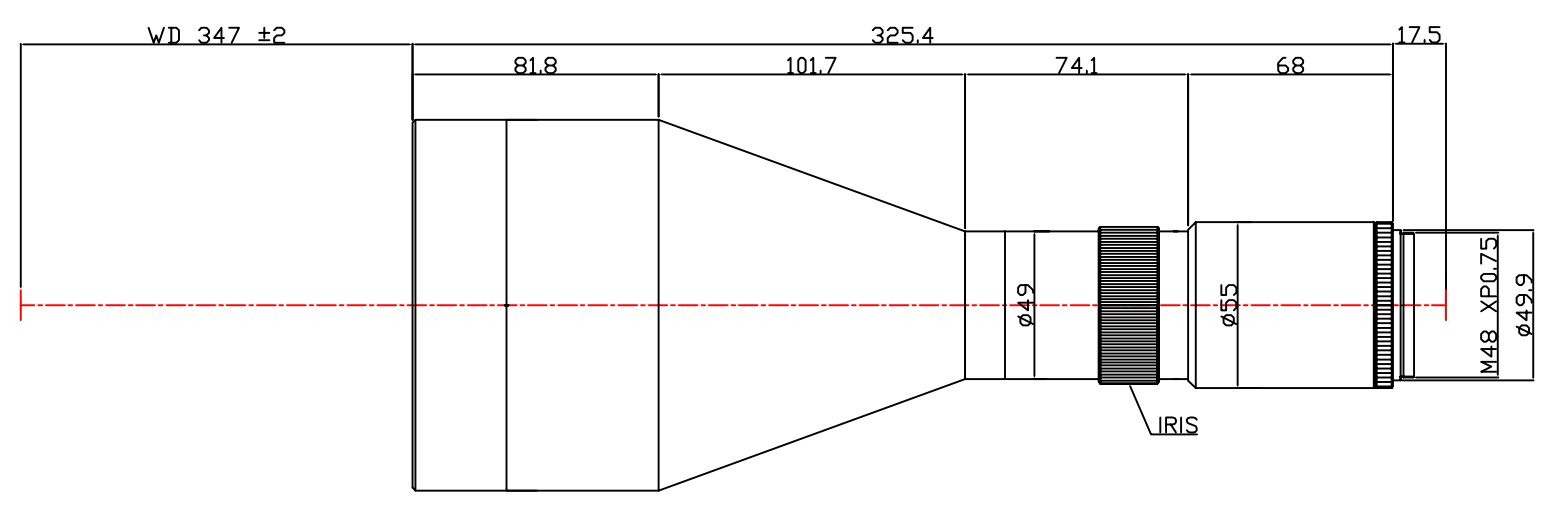

![Drawing](https://www.lensation.de/drawings/T25M-033-347I_DW1.jpg)
