Lensagon TC4MHR-30-40

Lensagon TC4MHR-30-40

Standard Object Side Telecentric Lens for 1 inch sensor, Magnification: 3x, WD 40mm, F# 10.7, NA 0.14, DOF 52um, Opt.Dist. 0.03

 Compare
SKU: 10408 Category:

Product Description

The Object Side Telecentric Lens TC4MHR-30-40 is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification3 x
Working Distance (WD)40 mm
Depth of Field (DOF)52 μm @ 22 μm
Resolution (Object Side)2.4 μm
Image Format (max.)1 inch
Megapixel (max.)4 MP
Working F-Number10.7
Numerical Aperture (NA)0.14
Field of View (FOV)3.75mm x 3.75mm
Telecentric TypeObject Side
Telecentricity0.04 °
Optical Distortion (max.)0.03 %
MountC-Mount *

* Other mounts are available on request.

pdf

Additional Information

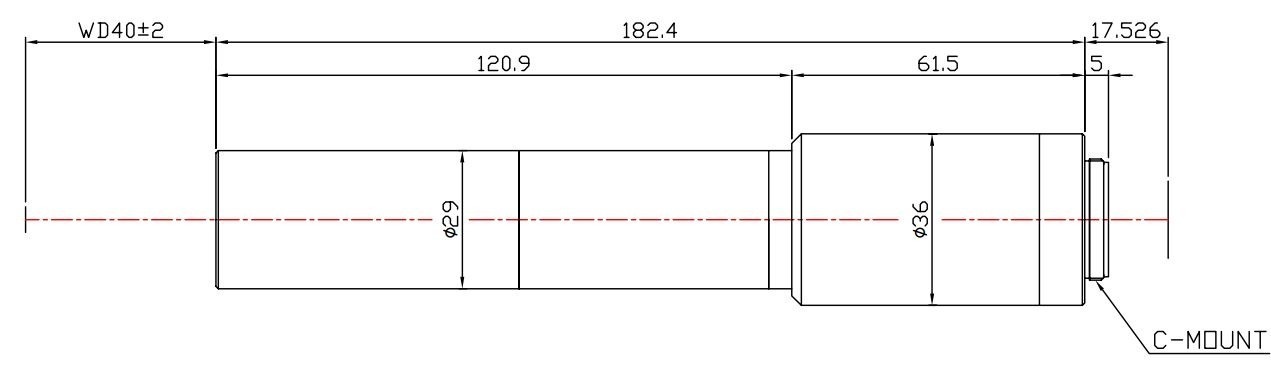

Drawing
