Lensagon TF8MHR-05-130I

Lensagon TF8MHR-05-130I

Super High Res Object Side Telecentric Lens for 23mm (diagonal) sensor, Magnification: 0.5x, WD 130mm, F# 7, NA 0.0357, DOF 1200um, Opt.Dist. 0.05

 Compare
SKU: 10605 Category:

Product Description

The Object Side Telecentric Lens TF8MHR-05-130I is suitable for sensors up to 8 megapixel and with an image format of 23mm (diagonal).

Magnification0.5 x
Working Distance (WD)130 mm
Depth of Field (DOF)1.2 mm @ 22 μm
Resolution (Object Side)9.4 μm
Image Format (max.)23mm (diagonal)
Megapixel (max.)8 MP
Working F-Number7
Numerical Aperture (NA)0.0357
Field of View (FOV)36.3mm x 27.2mm
Telecentric TypeObject Side
Telecentricity0.03 °
Optical Distortion (max.)0.05 %
MountF-Mount *

* Other mounts are available on request.

pdf

Additional Information

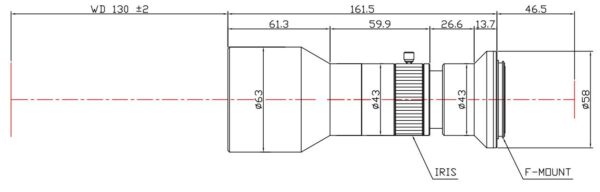

Drawing
