Lensagon TC10M-05-65I

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.5x, WD 65mm, F# 4.5, NA 0.0555, DOF 1440um, Opt.Dist. 0.03

 Compare
SKU: 11082 Category:

Product Description

The Object Side Telecentric Lens TC10M-05-65I is suitable for sensors up to 10 megapixel and with an image format of 2/3 inch.

Magnification 0.5 x
Working Distance (WD) 65 mm
Depth of Field (DOF) 1.44 mm
Resolution (Object Side) 3.02 μm
Image Format (max.) 2/3 inch
Megapixel (max.) 10 MP
Working F-Number 4.5
Numerical Aperture (NA) 0.0555
Field of View (FOV) 17.6mm x 13.2mm
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

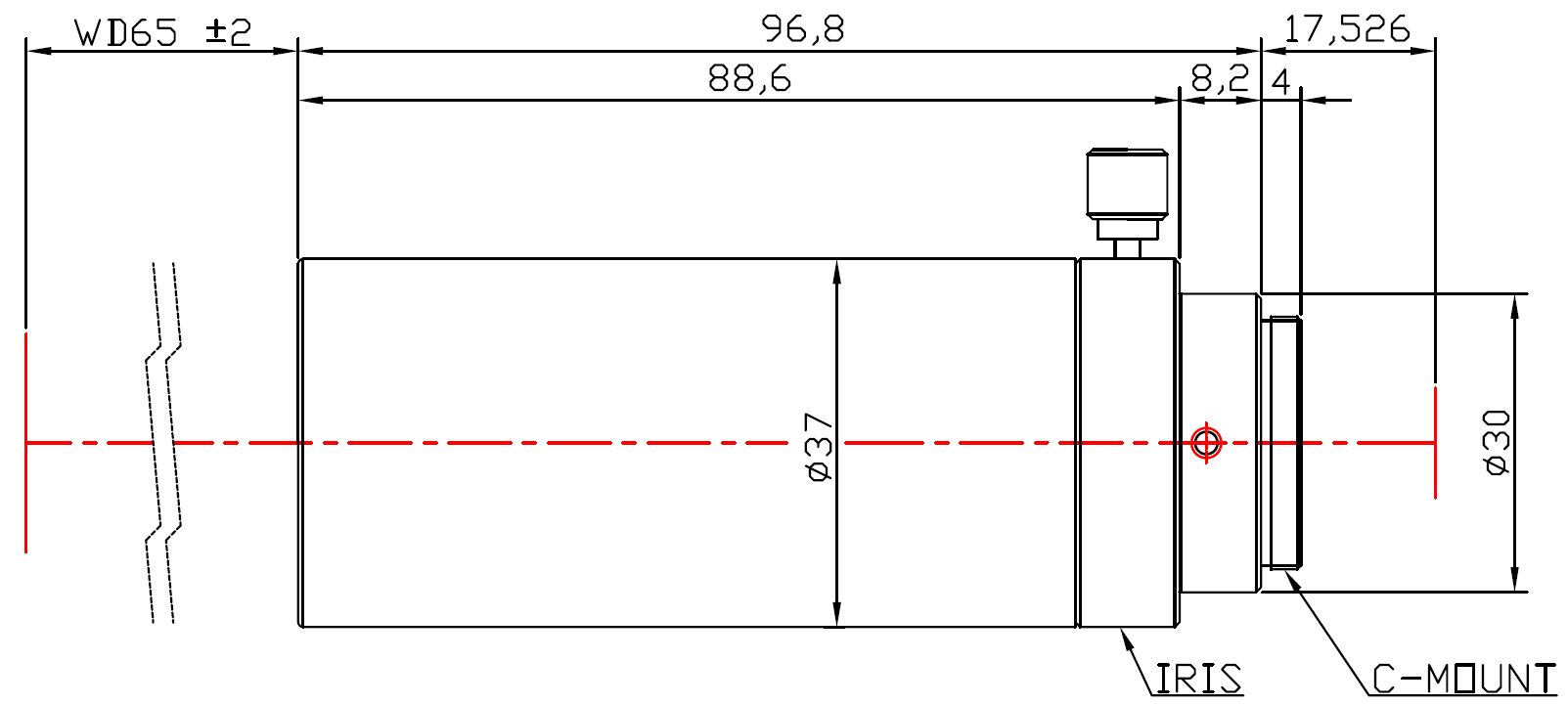

Drawing
