Lensagon T29M-038-265I

Lensagon T29M-038-265I

Super High Res Double Side Telecentric Lens for 43mm (diagonal) sensor, Magnification: 0.38x, WD 265mm, F# 10, NA 0.019, DOF 3060um, Opt.Dist. 0.04

 Compare
SKU: 10616 Category:

Product Description

The Double Side Telecentric Lens T29M-038-265I is suitable for sensors up to 29 megapixel and with an image format of 43mm (diagonal).

Magnification 0.38 x
Mount M58 *
Working F-Number 10
Working Distance (WD) 265 mm
Depth of Field (DOF) 3.06 mm
Resolution (Object Side) 17.6 μm
Numerical Aperture (NA) 0.019
Image Format (max.) 43mm (diagonal)
Megapixel (max.) 29 MP
Field of View (FOV) 94.73mm x 63.15mm@29M CCD
Telecentric Type Double Side
Telecentricity 0.05 °
Optical Distortion (max.) 0.04 %
Special Feature Super High Res

* Other mounts are available on request.

pdf

Additional Information

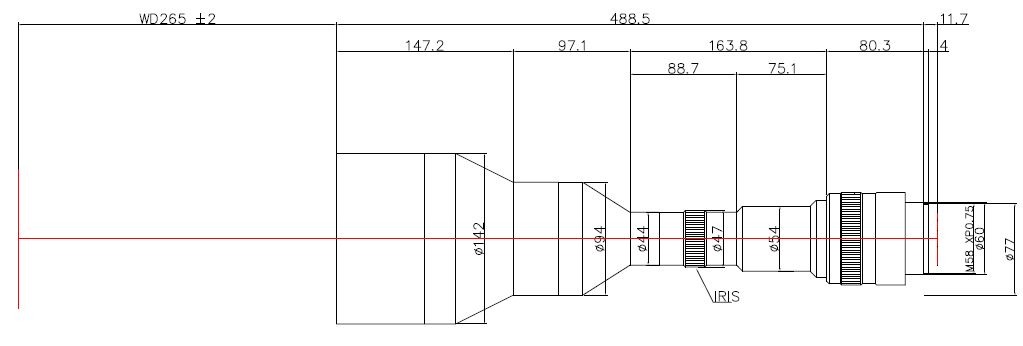

Drawing
