Lensagon MF8M-074-247

Lensagon MF8M-074-247

Macro Lens for 8M (23mm) sensor, Magnification: 0.74x, WD 247mm, F# 7.1, NA 0.0518, DOF 574um, Opt.Dist. 0.06

 Compare
SKU: 10966 Category:

Product Description

The Macro Lens MF8M-074-247 is suitable for sensors up to 8 megapixel and with an image format of 8M (23mm).

Magnification 0.74 x
Mount F-Mount
Working F-Number 7.1
Working Distance (WD) 247 mm
Depth of Field (DOF) 574 μm
Resolution (Object Side) 6.5 μm
Numerical Aperture (NA) 0.0518
Image Format (max.) 8M (23mm)
Megapixel (max.) 8 MP
Field of View (FOV) 24.48mm x 18.36mm@8M CCD
Telecentric Type Macro
Optical Distortion (max.) 0.06 %
pdf

Additional Information

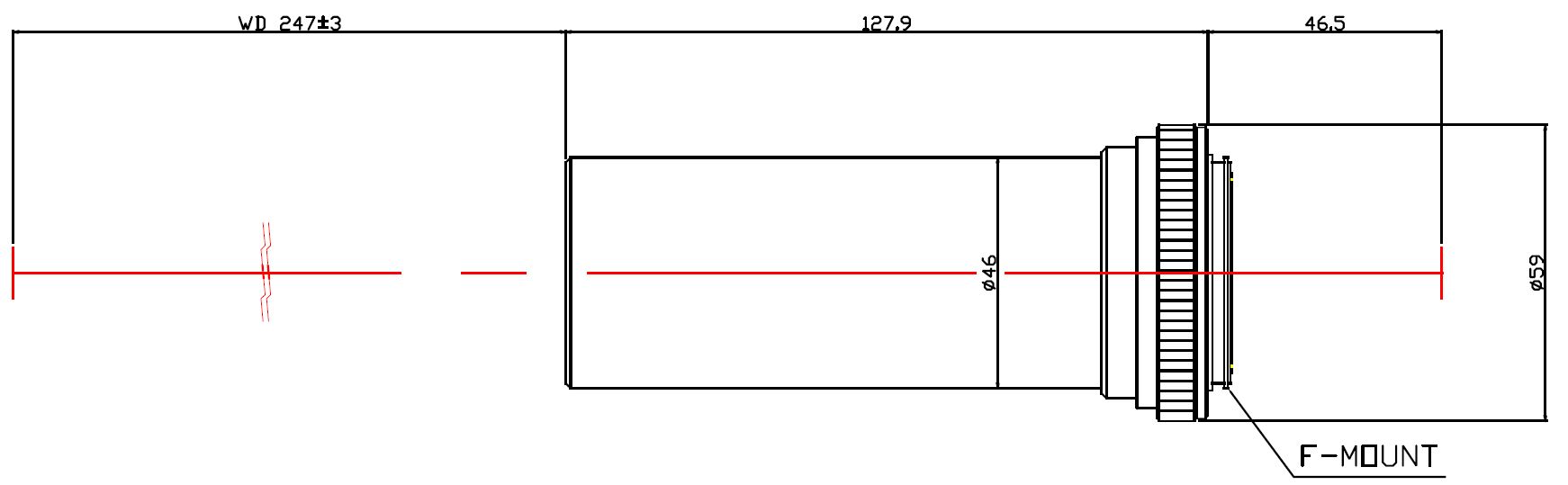

Technical Drawing:

Drawing
