Lensagon MCHR-057-200

High Res Macro Lens for 2/3 inch sensor, Magnification: 0.57x, WD 200mm, F# 8.6, NA 0.029, DOF 2400um, Opt.Dist. 0.04

 Compare
SKU: 10946 Category:

Product Description

The Macro Lens MCHR-057-200 is suitable for sensors with an image format of 2/3 inch.

Magnification 0.57 x
Mount C-Mount *
Working F-Number 8.60
Working Distance (WD) 200.00 mm
Depth of Field (DOF) 2.4 mm
Resolution (Object Side) 11.60 μm
Numerical Aperture (NA) 0.029
Image Format (max.) 2/3 inch
Field of View (FOV) 15.43mm x 1.58mm@2/3″ CCD
Telecentric Type Macro
Optical Distortion (max.) 0.04 %
Special Feature High Res

* Other mounts are available on request.

pdf

Additional Information

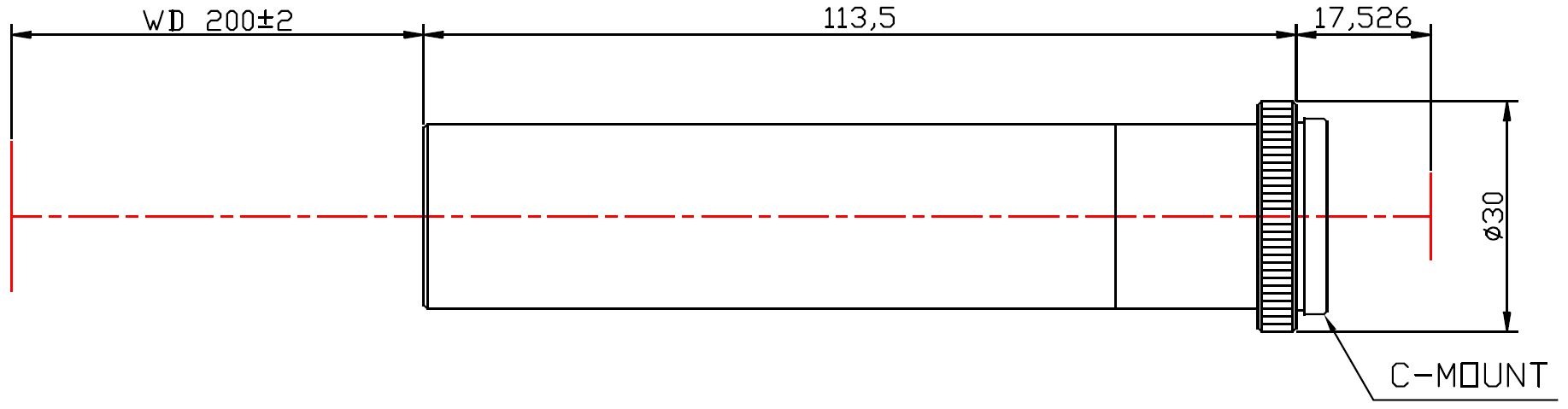

Drawing
