Lensagon MCST-06-120

Macro Lens for 1/2 inch sensor, Magnification: 0.6x, WD 20mm, F# 8.3, NA 0.036, DOF 1800um, Opt.Dist. 0.04

 Compare
SKU: 10315 Category:

Product Description

The Macro Lens MCST-06-120 is suitable for sensors with an image format of 1/2 inch.

Magnification 0.60 x
Mount C-Mount *
Working F-Number 8.30
Working Distance (WD) 20.00 mm
Depth of Field (DOF) 1.8 mm
Resolution (Object Side) 9.30 μm
Numerical Aperture (NA) 0.036
Image Format (max.) 1/2 inch
Field of View (FOV) 10.67mm x 8mm@1/2″ CCD
Telecentric Type Macro
Optical Distortion (max.) 0.04 %

* Other mounts are available on request.

pdf

Additional Information

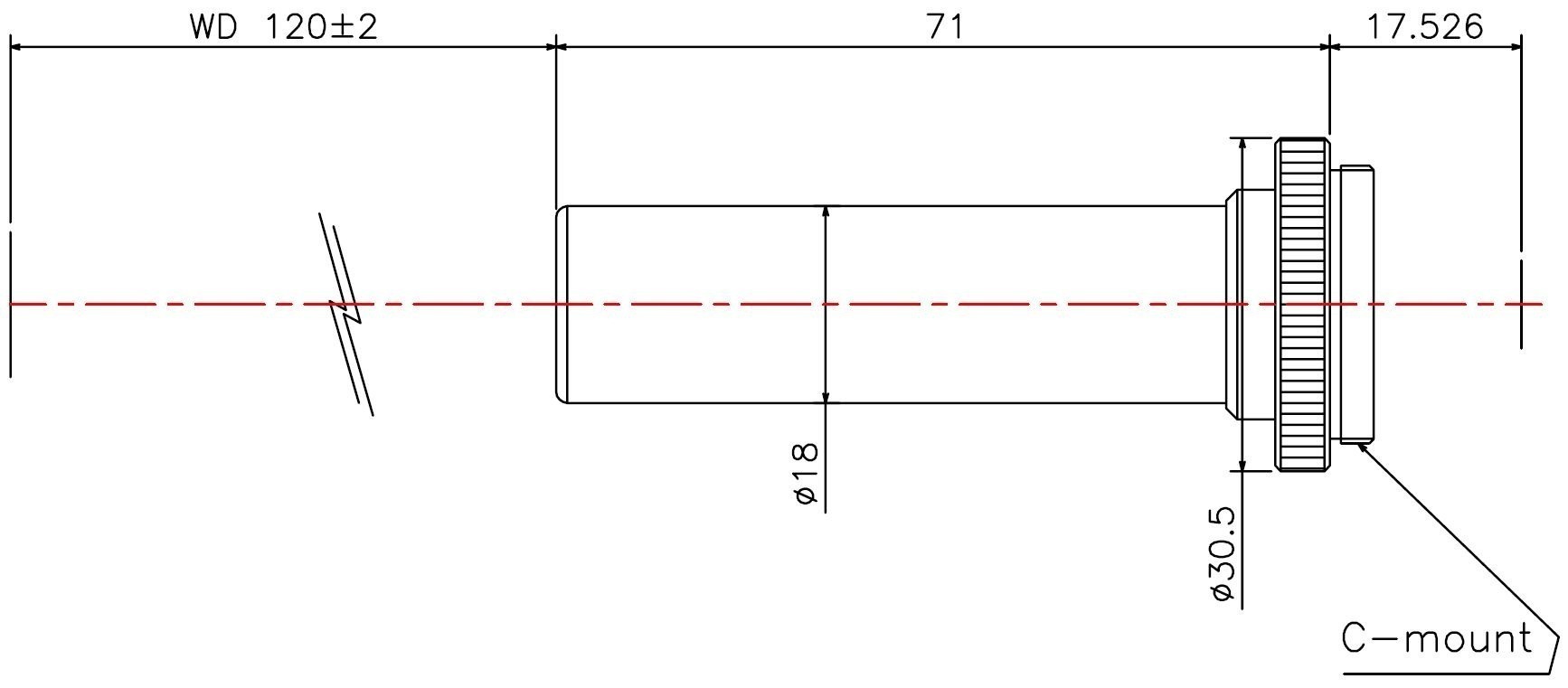

Drawing
