Lensagon MC4M-075-160

Macro Lens for 1 inch sensor, Magnification: 0.75x, WD 160mm, F# 8.1, NA 0.034, DOF 780um, Opt.Dist. 0.06

 Compare
SKU: 10956 Category:

Product Description

The Macro Lens MC4M-075-160 is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.75 x
Mount C-Mount *
Working F-Number 8.1
Working Distance (WD) 160 mm
Depth of Field (DOF) 780 μm
Resolution (Object Side) 9.9 μm
Numerical Aperture (NA) 0.034
Image Format (max.) 1 inch
Megapixel (max.) 4 MP
Field of View (FOV) 15.01mm x 15.01mm@4M CCD
Telecentric Type Macro
Optical Distortion (max.) 0.06 %

* Other mounts are available on request.

pdf

Additional Information

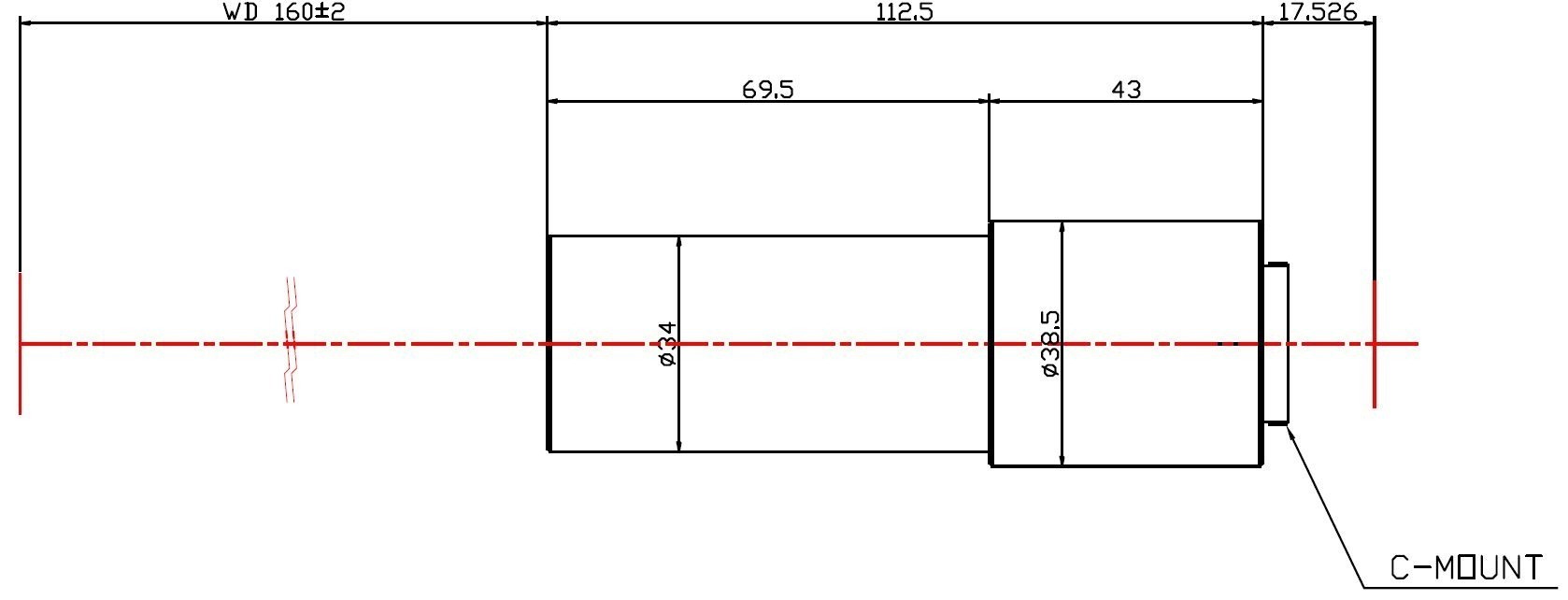

Drawing
