Lensagon BM8018S118NDV2

Lensagon BM8018S118NDV2

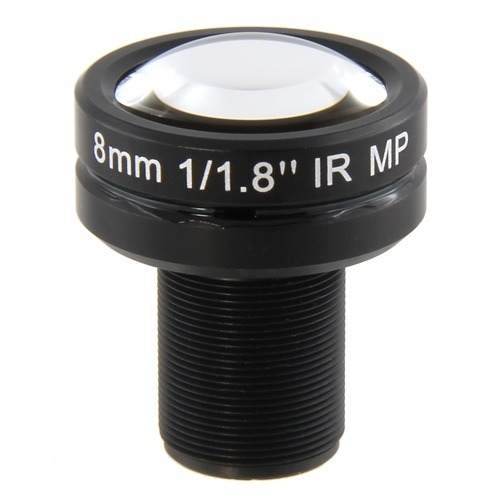

1 Megapixel S-Mount lens for 1/1.8 inch sensors, F1.8, f=7.8mm

 Compare
SKU: 10298 Category:

Product Description

The S-Mount lens Lensagon BM8018S118NDV2 is suitable for common sensors up to 1 megapixel with an image format of 1/1.8 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/1.8 inch
Focal Length 7.8 mm
Aperture (f#) 1.8
MOD 0.1 m
Back Focal Length 7.1
Angle of View (D) 57°
Megapixel 1 MP
Optical Distortion -2 %
Weight 16.4 g
Iris fixed
Focus fixed
pdf

Additional Information

Technical Drawing:

Drawing
