Lensagon BF5M11920C

Lensagon BF5M11920C

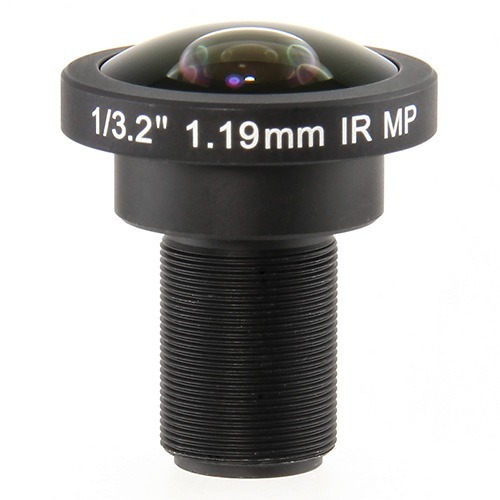

5 Megapixel Fisheye S-Mount lens for 1/3.2 inch sensors, F2, f=1.19mm

 Compare
SKU: 01023 Category:

Product Description

The Fisheye S-Mount lens Lensagon BF5M11920C is suitable for common sensors up to 5 megapixel with an image format of 1/3.2 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3.2 inch
Focal Length 1.19 mm
Aperture (f#) 2
MOD 0.1 m
Back Focal Length 5.95
Angle of View (D) 180°
Megapixel (max.) 5 MP
IR Correction No
IR Cut Filter Yes
Image Circle 3.24 mm
Iris fixed
Focus fixed
Typ Fisheye
pdf

Additional Information

Technical Drawing:

Drawing
