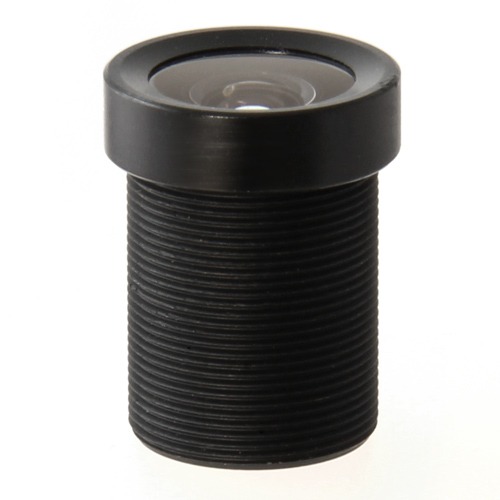

Lensagon B5M3618C

5.00 Megapixel S-Mount lens for 1/2.5 inch sensors, F1.80, f=3.60mm

 Compare
SKU: 09982 Category:

Product Description

The S-Mount lens Lensagon B5M3618C is suitable for common sensors up to 5.00 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 3.60 mm
Aperture (f#) 1.80
Back Focal Length 7.46
Angle of View (D) 128.00° / H: 96.40° / V: 69.80°
Megapixel (max.) 5.00 MP
IR Correction No
IR Cut Filter Yes
Optical Distortion -50.00 %
Weight 6.00 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information


Drawing
