Lensagon BF5M2223S129C

Lensagon BF5M2223S129C

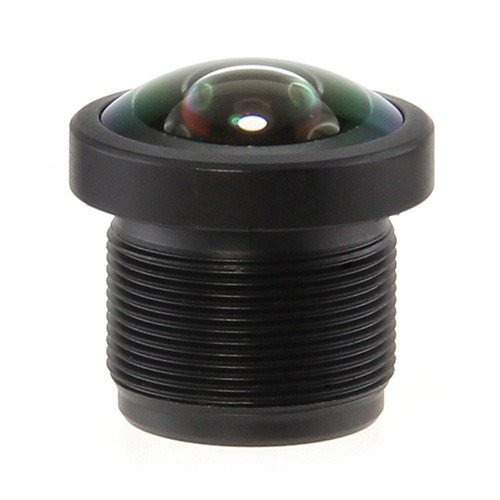

5 Megapixel Fisheye S-Mount lens for 1/2.9 inch sensors, F2.3, f=2.2mm

 Compare
SKU: 10835 Category:

Product Description

The Fisheye S-Mount lens Lensagon BF5M2223S129C is suitable for common sensors up to 5 megapixel with an image format of 1/2.9 inch.

Mount S-Mount
Sensor 1/2.9 inch
Focal Length 2.2 mm
Aperture (f#) 2.3
MOD 0.1 m
Back Focal Length 4.71
Angle of View (D) 195°
Megapixel 5 MP
IR Cut Filter Yes
Optical Distortion -0.17 %
Image Circle 6.2 mm
Iris fixed
Focus fixed
Chief ray angle 15.9°
Typ Fisheye
pdf

Additional Information

Technical Drawing:

Drawing
