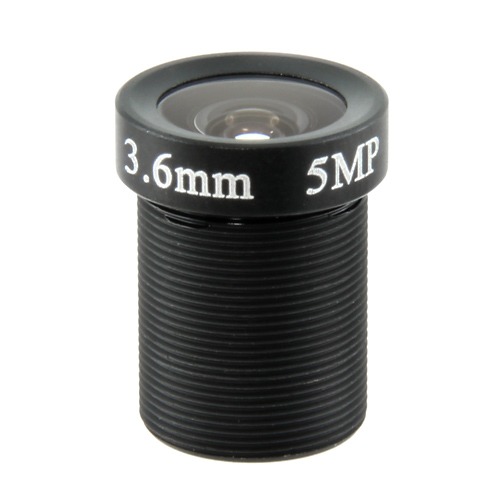

Lensagon B5M3618

5 Megapixel S-Mount lens for 1/2.5 inch sensors, F1.8, f=3.6mm

 Compare
SKU: 09981 Category:

Product Description

The S-Mount lens Lensagon B5M3618 is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 3.6 mm
Aperture (f#) 1.8
Back Focal Length 7.25
Angle of View (D) 128° / H: 96.4° / V: 69.8°
Megapixel (max.) 5 MP
IR Cut Filter No
Optical Distortion -0.5 %
Weight 5.7 g
Iris fixed
Focus fixed
Chief ray angle 11.7 °
pdf

Additional Information


Drawing
