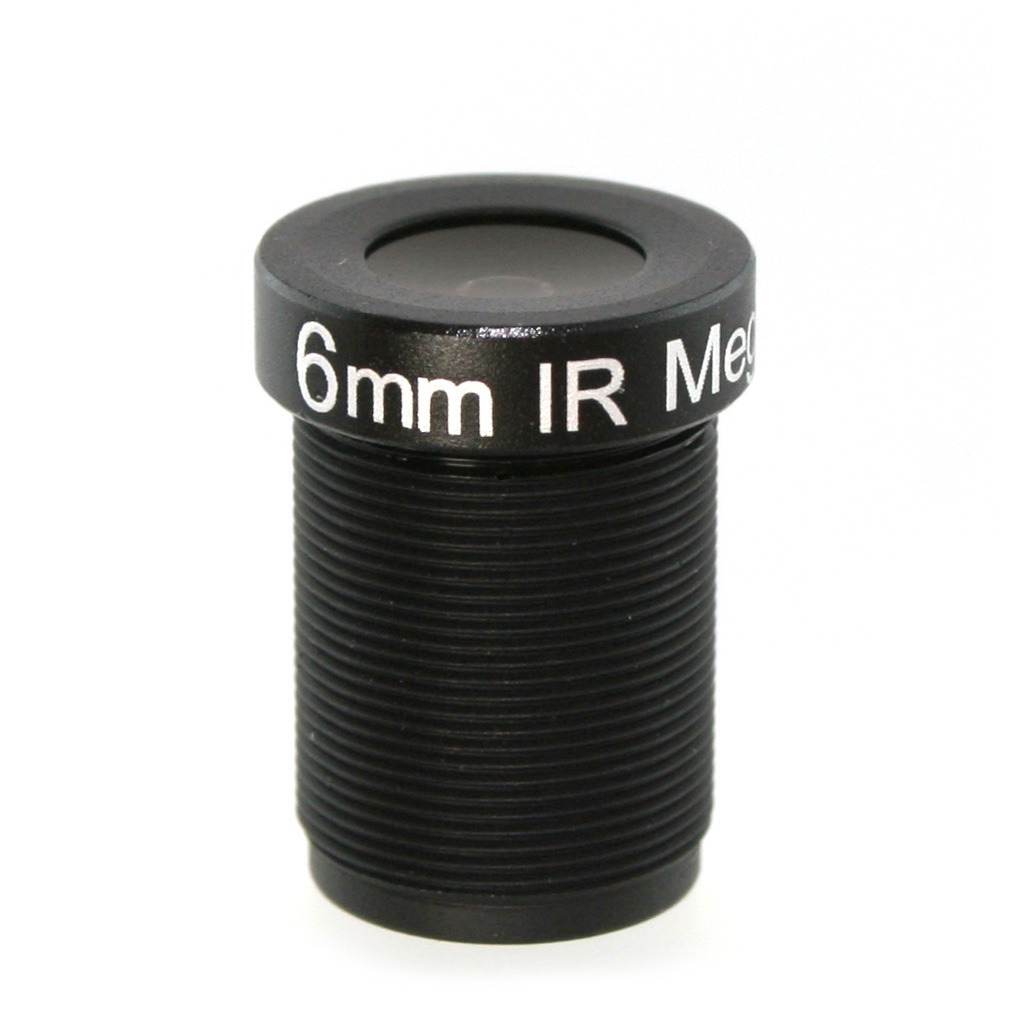

Lensagon B5M6018

5 Megapixel S-Mount lens for 1/2.5 inch sensors, F1.8, f=6mm

 Compare
SKU: 09943 Category:

Product Description

The S-Mount lens Lensagon B5M6018 is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

MountS-Mount
Sensor1/2.5 inch
Focal Length6 mm
Aperture (f#)1.8
MOD0.15 m
Back Focal Length9.58
Angle of View (D)75°
Megapixel5 MP
IR Cut FilterNo
Weight5.6 g
Irisfixed
Focusfixed
TypStandard
pdf

Additional Information

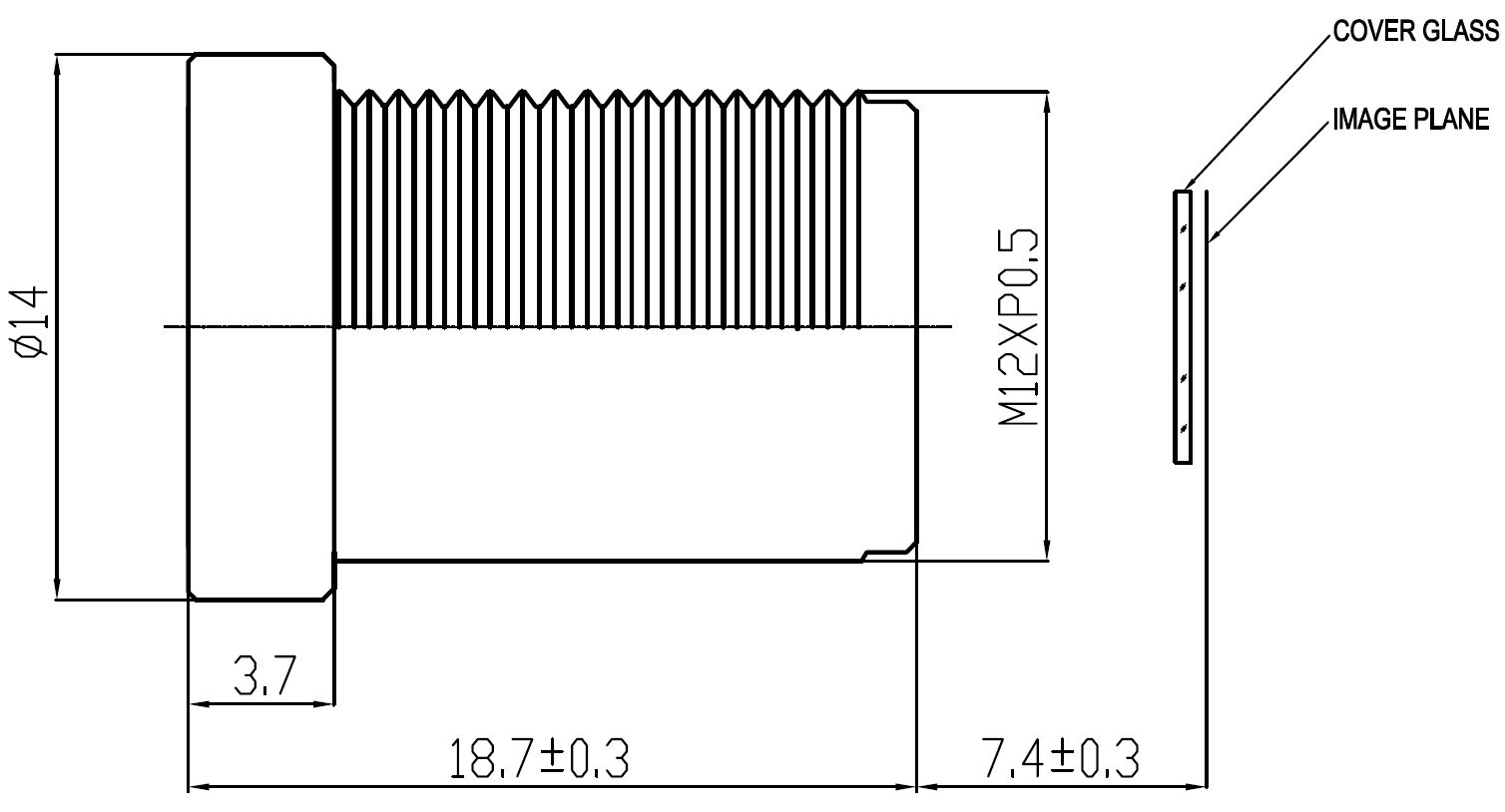

Technical Drawing:

Drawing
