Lensagon B8M8020S118ND

8 Megapixel S-Mount lens for 1/1.7 inch sensors, F2, f=8mm

 Compare
SKU: 11429 Category:

Product Description

The S-Mount lens Lensagon B8M8020S118ND is suitable for current sensors up to 8 megapixel with an image format of 1/1.7 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/1.7 inch
Focal Length 8 mm
Aperture (f#) 2
MOD 0.1 m
Back Focal Length 6.06
Angle of View (D) 60.8° / H: 50.8° / V: 38.6°
Megapixel (max.) 8 MP
IR Correction No
Optical Distortion -2 %
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

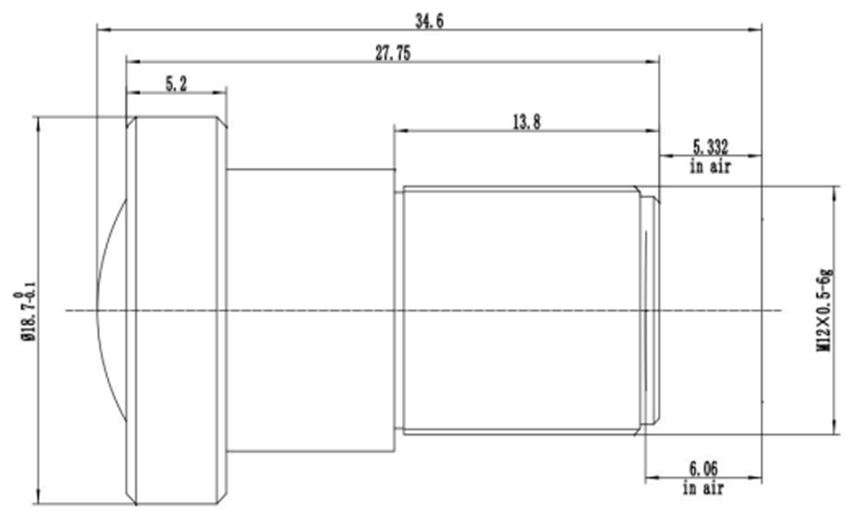

Drawing
