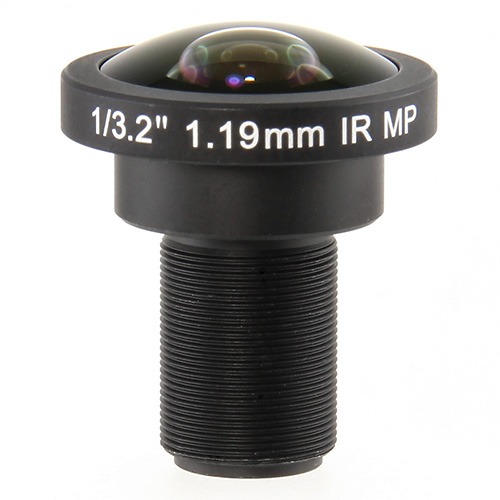

Lensagon BF5M11920

5 Megapixel Fisheye S-Mount lens for 1/3.2 inch sensors, F2, f=1.19mm

 Compare
SKU: 01010 Category:

Product Description

The Fisheye S-Mount lens Lensagon BF5M11920 is suitable for common sensors up to 5 megapixel with an image format of 1/3.2 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3.2 inch
Focal Length 1.19 mm
Aperture (f#) 2
MOD 0.2 m
Back Focal Length 6.44
Angle of View (D) 180° / H: 180° / V: 180°
Megapixel (max.) 5 MP
IR Correction Yes
IR Cut Filter No
Image Circle 3.24 mm
Weight 16.25 g
Iris fixed
Focus fixed
Typ Fisheye
pdf

Additional Information


Drawing
