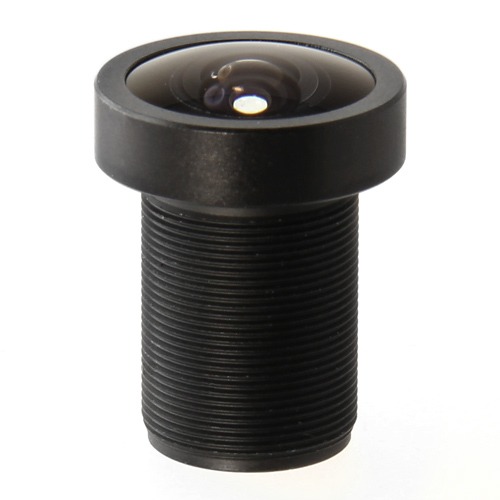

Lensagon B5M2916C

Lensagon B5M2916C

5 Megapixel S-Mount lens for 1/2.5 inch sensors, F2, f=2.9mm

 Compare
SKU: 09956 Category:

Product Description

The S-Mount lens Lensagon B5M2916C is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 2.9 mm
Aperture (f#) 2
MOD 0.1 m
Back Focal Length 4.47
Angle of View (D) 152°
Megapixel 5 MP
IR Cut Filter Yes
Optical Distortion -63 %
Weight 7.2 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
