Product Description

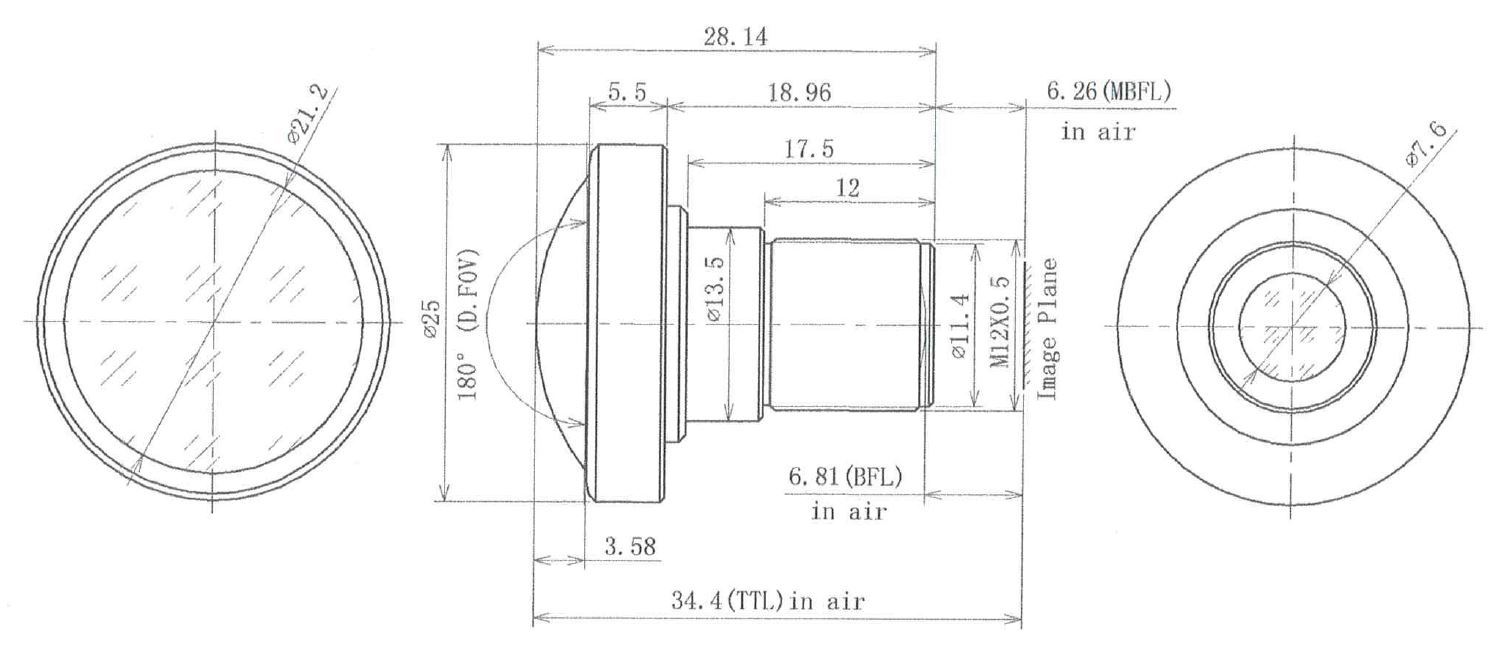

The S-Mount lens Lensagon B5M2920S118 is suitable for common sensors up to 5 megapixel with an image format of 1/1.8 inch.
| Mount | S-Mount |
|---|---|
| Sensor | 1/1.8 inch |
| Focal Length | 2.95 mm |
| Aperture (f#) | 2.8 |
| MOD | 0.3 m |
| Back Focal Length | 6.81 |
| Angle of View (D) | 180° / H: 143° / V: 106° |
| Megapixel (max.) | 5 MP |
| IR Correction | Yes |
| Optical Distortion | -4.3 % |
| Image Circle | 9 mm |
| Iris | fixed |
| Focus | fixed |
| Typ | Standard |
