Lensagon B10M5425

10 Megapixel S-Mount lens for 1/2.3 inch sensors, F2.5, f=5.4mm

 Compare
SKU: 00995 Category:

Product Description

The S-Mount lens Lensagon B10M5425 is suitable for current sensors up to 10 megapixel with an image format of 1/2.3 inch.

Mount S-Mount
Sensor 1/2.3 inch
Focal Length 5.4 mm
Aperture (f#) 2.5
MOD 0.2 m
Back Focal Length 6.6
Angle of View (D) 70° / H: 60° / V: 46°
Megapixel (max.) 10 MP
IR Correction Yes
Optical Distortion -2 %
Image Circle 7.8 mm
Weight 7 g
Iris fixed
Focus fixed
Chief ray angle 10 °
Typ Standard
pdf

Additional Information

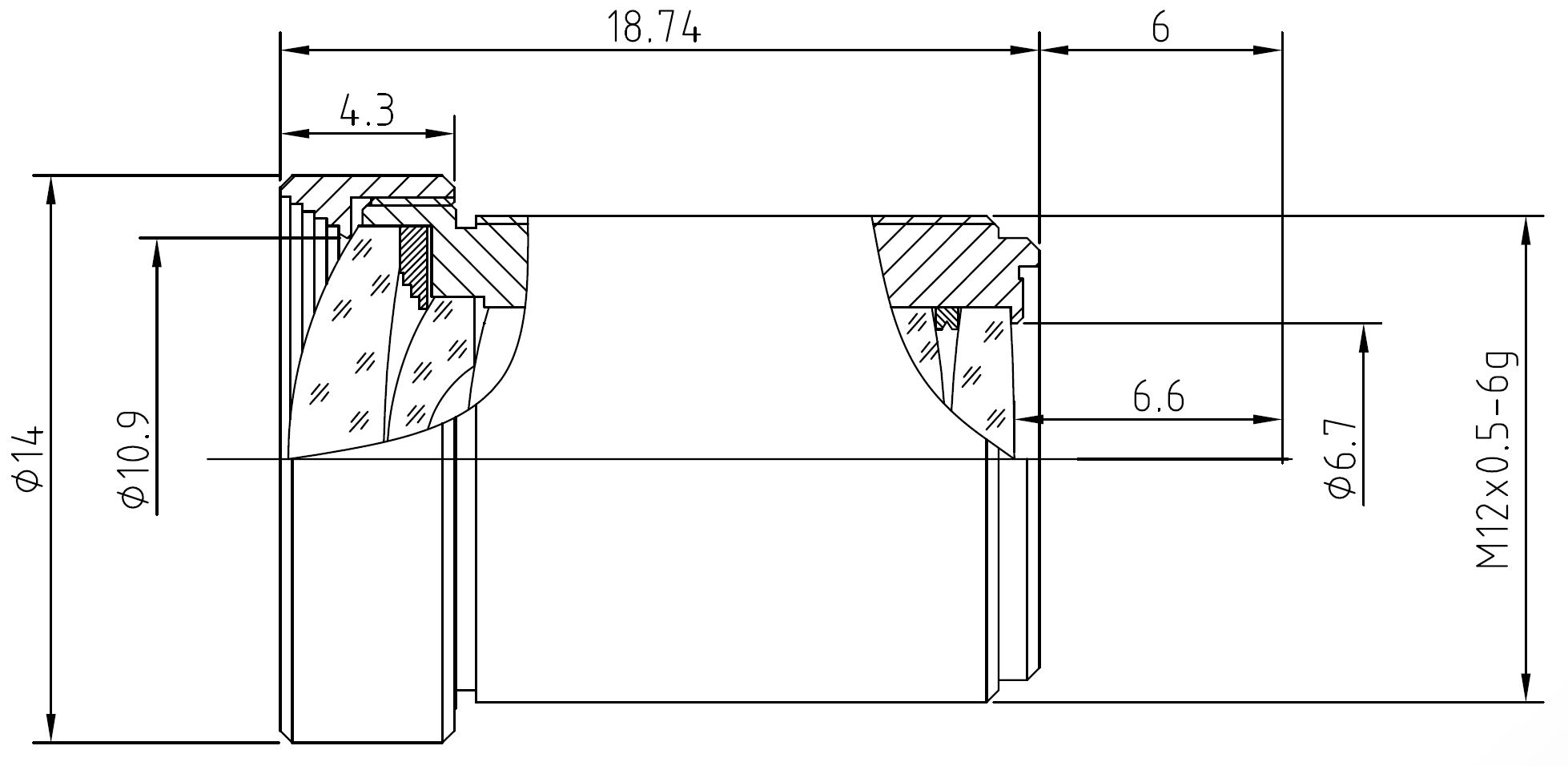

Drawing
