Product Description

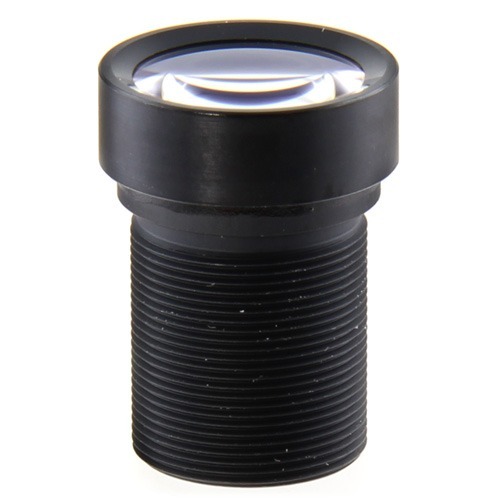

The S-Mount lens Lensagon B14M20020S123C is suitable for current sensors up to 14 megapixel with an image format of 1/2.3 inch. It is characterized by a particularly high light intensity.
| Mount | S-Mount |
|---|---|
| Sensor | 1/2.3 inch |
| Focal Length | 20 mm |
| Aperture (f#) | 2 |
| MOD | 0.2 m |
| Back Focal Length | 13.43 |
| Angle of View (D) | 21.5° |
| Angle of View (H) | 17.1° |
| Angle of View (V) | 13° |
| Megapixel | 14 MP |
| IR Cut Filter | Yes |
| Optical Distortion | 0.7 % |
| Image Circle | 7.67 mm |
| Iris | fixed |
| Focus | fixed |
| Typ | Standard |
Additional Information

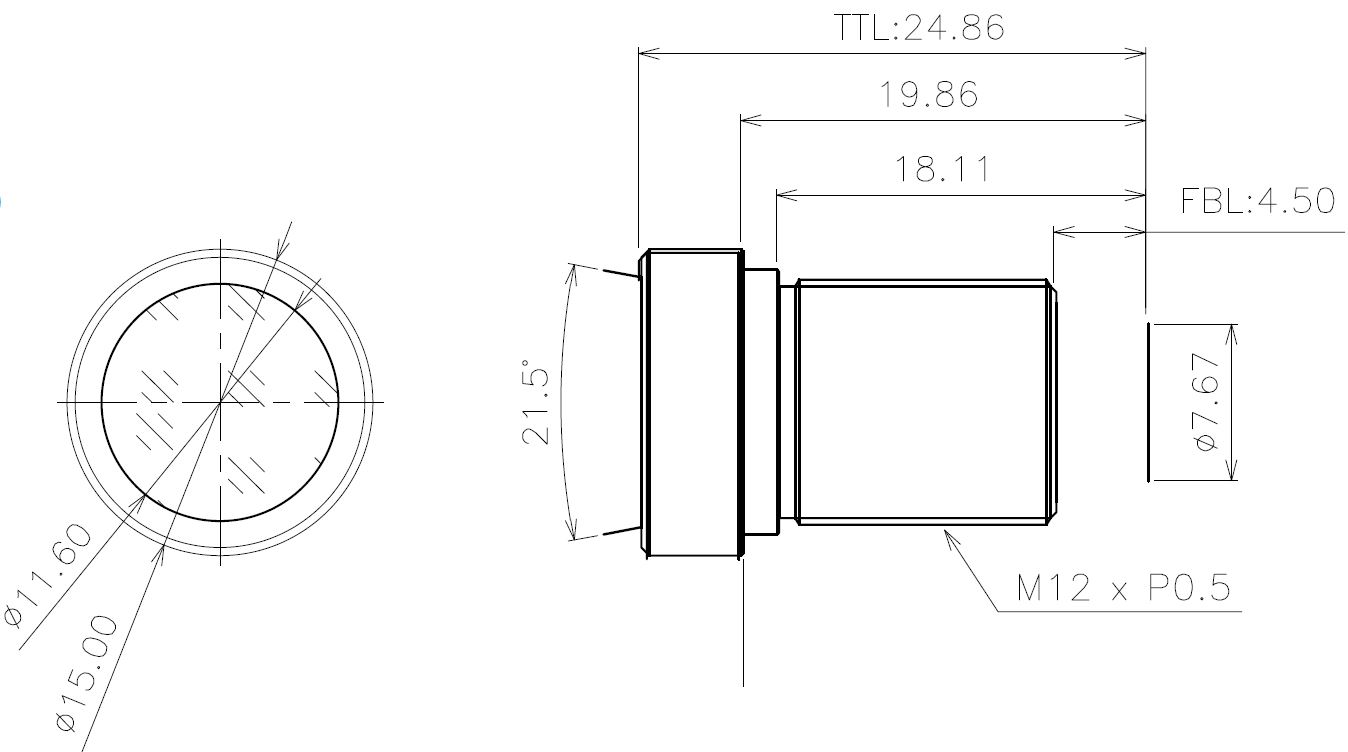

Technical Drawing:
