B10M5425C

Lensagon B10M5425C

10 Megapixel S-Mount lens for 1/2.3 inch sensors, F2.5, f=5.4mm

 Compare
SKU: 00996 Category:

Product Description

The S-Mount lens Lensagon B10M5425C is suitable for current sensors up to 10 megapixel with an image format of 1/2.3 inch.

Mount S-Mount
Sensor 1/2.3 inch
Focal Length 5.4 mm
Aperture (f#) 2.5
MOD 0.2 m
Back Focal Length 6.1
Angle of View (D) 70°
Angle of View (H) 60°
Angle of View (V) 46°
Megapixel 10 MP
IR Cut Filter Yes
Optical Distortion -2 %
Image Circle 7.7 mm
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

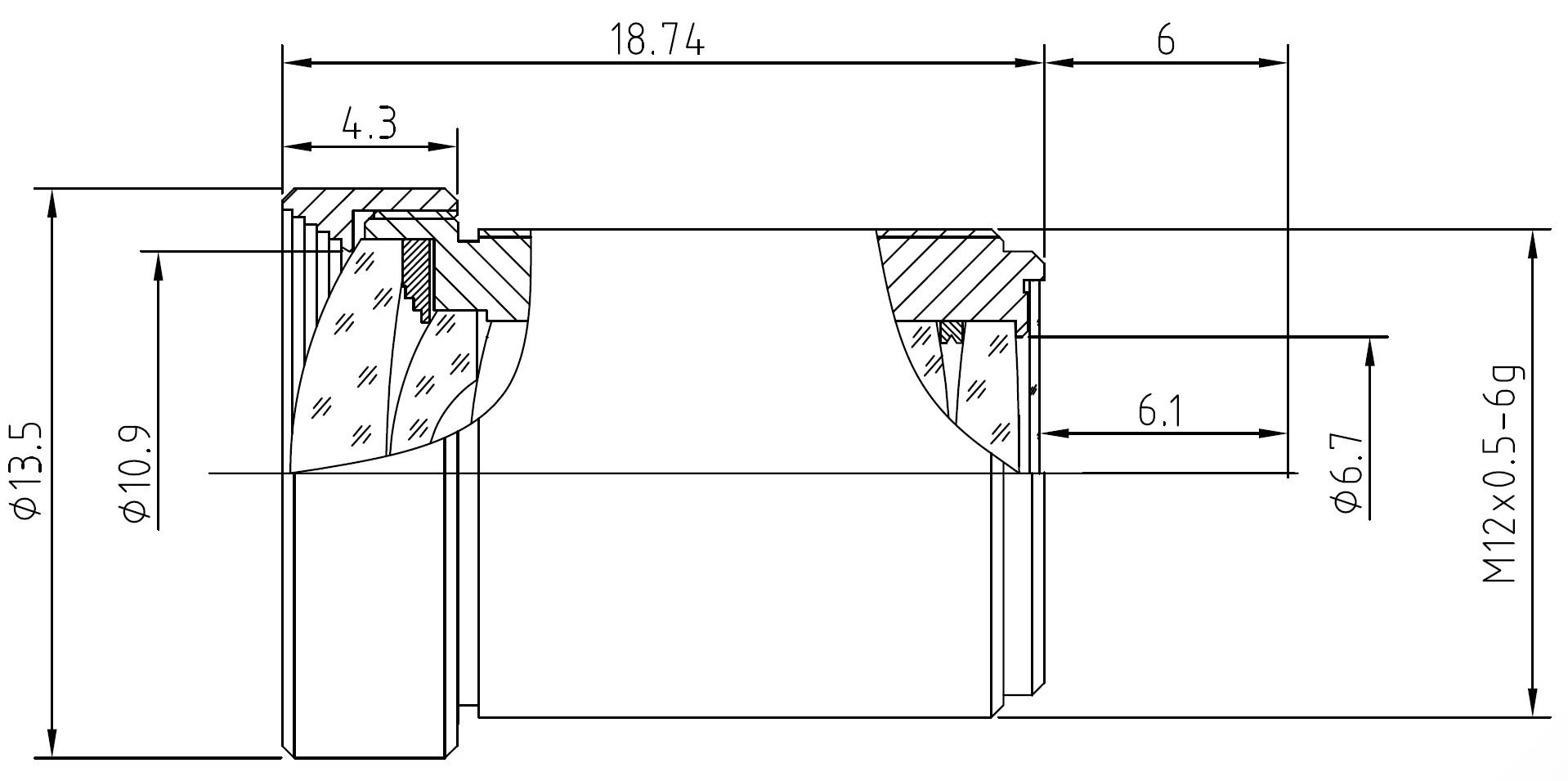

Technical Drawing:

Drawing
