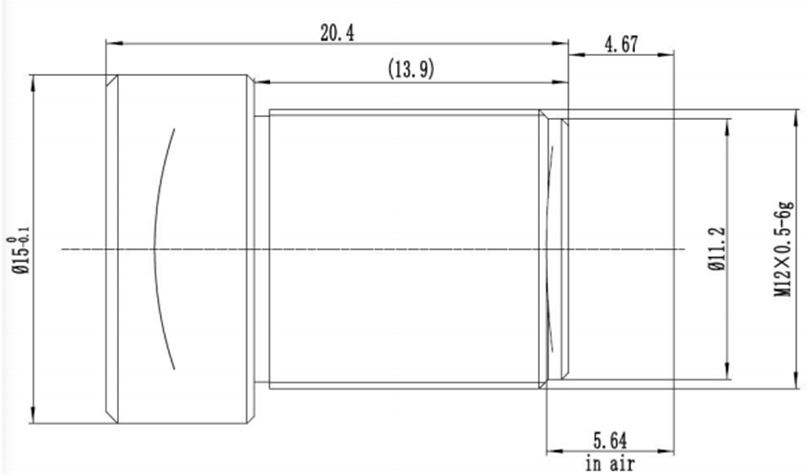

Lensagon B8M12020S118ND
This product has been discontinued.
8 Megapixel S-Mount lens for 1/1.8 inch sensors, F2, f=12mm
Product Description
The S-Mount lens Lensagon B8M12020S118ND is suitable for current sensors up to 8 megapixel with an image format of 1/1.8 inch. It is characterized by a particularly high light intensity.
| Mount | S-Mount |
|---|---|
| Sensor | 1/1.8 inch |
| Focal Length | 12.00 mm |
| Aperture (f#) | 2.00 |
| MOD | 0.15 m |
| Back Focal Length | 5.64 |
| Angle of View (D) | 44.90° / H: 33.90° / V: 25.60° |
| Megapixel (max.) | 8.00 MP |
| IR Correction | No |
| Optical Distortion | -2 % |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 8.30 ° |
| Typ | Standard |
