Lensagon TL12K-10-122C

Lensagon TL12K-10-122C

Linescan Object Side Telecentric Lens for 12K (5um) sensor, Magnification: 1x, WD 122mm, F# 10, NA 0.05, DOF 200um, Opt.Dist. 0.02, Coaxial Version

 Compare
SKU: 10339 Category:

Product Description

The Object Side Telecentric Lens TL12K-10-122C is suitable for sensors with an image format of 12K (5um).

Magnification 1 x
Working Distance (WD) 122 mm
Depth of Field (DOF) 200 μm
Resolution (Object Side) 6.7 μm
Image Format (max.) 12K (5um)
Working F-Number 10
Numerical Aperture (NA) 0.05
Field of View (FOV) 61,4 mm @ 12K
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.02 %
Mount M72 *

* Other mounts are available on request.

pdf

Additional Information

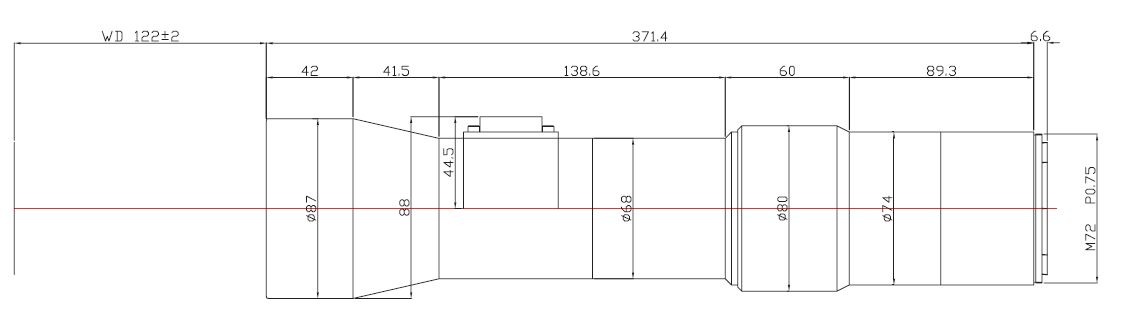

Drawing
