Lensagon TF8MHR-10-157I

Super High Res Object Side Telecentric Lens for 8M (23mm) sensor, Magnification: 1x, WD 157mm, F# 7, NA 0.071, DOF 308um, Opt.Dist. 0.06

 Compare
SKU: 10474 Category:

Product Description

The Object Side Telecentric Lens TF8MHR-10-157I is suitable for sensors up to 8 megapixel and with an image format of 8M (23mm).

Magnification 1 x
Mount F-Mount *
Working F-Number 7
Working Distance (WD) 157 mm
Depth of Field (DOF) 308 μm
Resolution (Object Side) 4.7 μm
Numerical Aperture (NA) 0.071
Image Format (max.) 8M (23mm)
Megapixel (max.) 8 MP
Field of View (FOV) 18.1 mm x 13.6 mm @ 8M CCD
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.06 %
Special Feature Super High Res

* Other mounts are available on request.

pdf

Additional Information

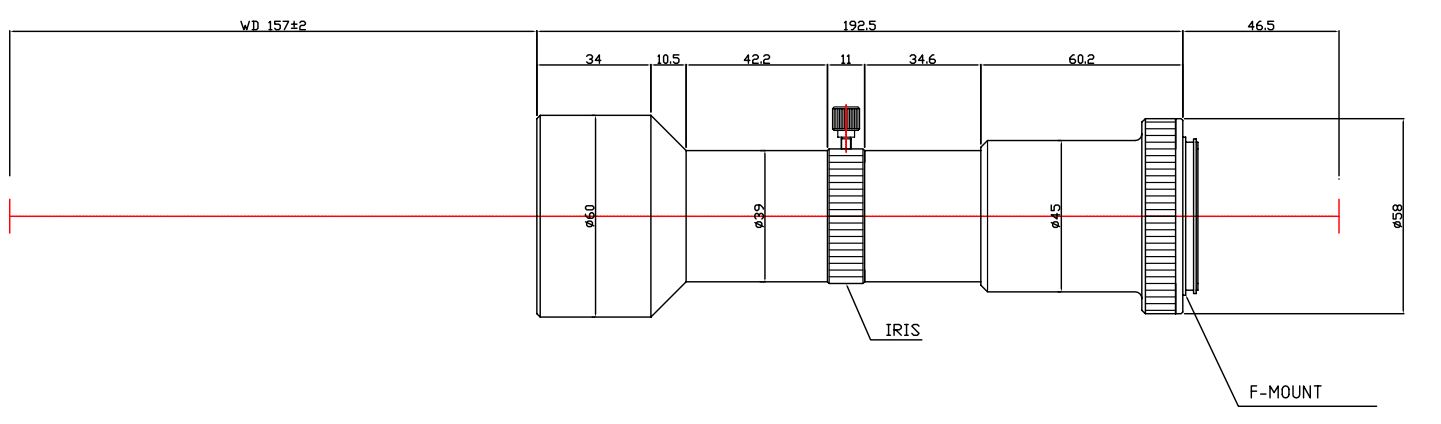

Drawing
