Lensagon TDC-0255-70

Standard Double Side Telecentric Lens for 1/1.8 inch sensor, Magnification: 0.255x, WD 70mm, F# 8, NA 0.016, DOF 9800um, Opt.Dist. 0.03

 Compare
SKU: 10421 Category:

Product Description

The Double Side Telecentric Lens TDC-0255-70 is suitable for sensors with an image format of 1/1.8 inch.

Magnification 0.255 x
Working Distance (WD) 70 mm
Depth of Field (DOF) 9.8 mm @ 40 μm
Resolution (Object Side) 21 μm
Image Format (max.) 1/1.8 inch
Working F-Number 8
Numerical Aperture (NA) 0.016
Field of View (FOV) 24.51mm x 25.88mm @ 2/3″
Telecentric Type Double Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

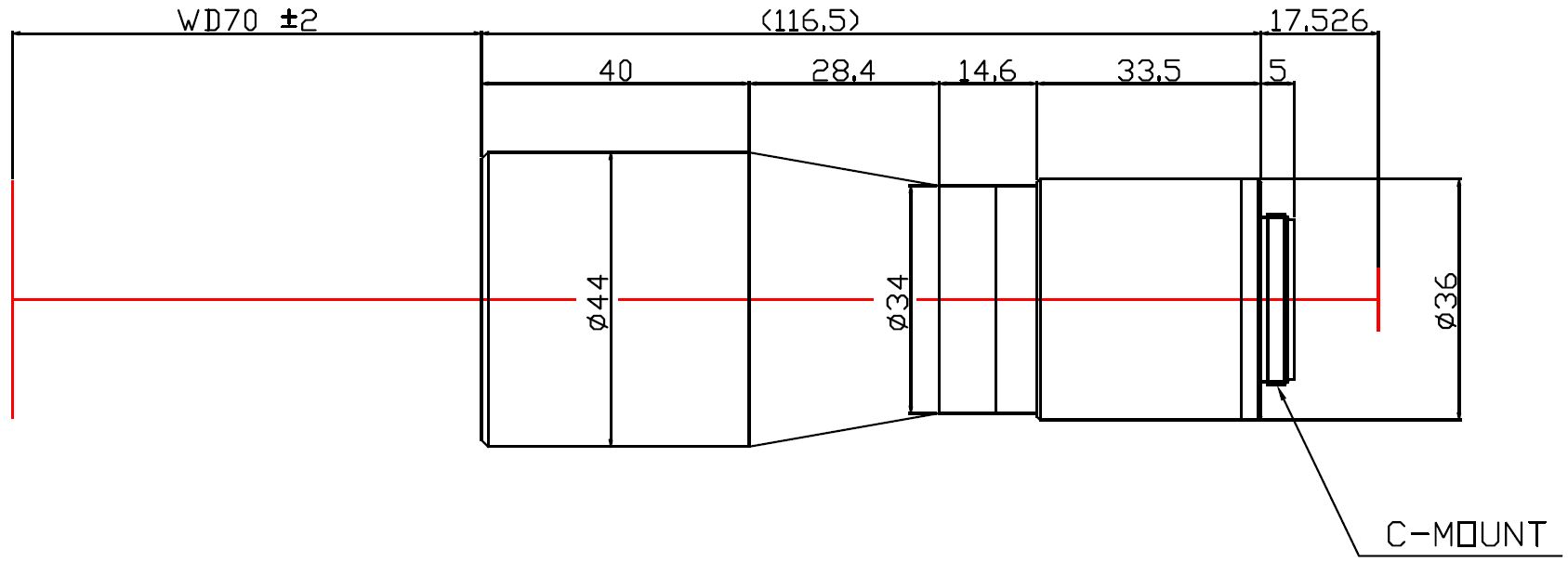

Drawing
