Lensagon TDC-012-230

Standard Double Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.12x, WD 230mm, F# 7.3, NA 0.0082, DOF 40500um, Opt.Dist. 0.04

 Compare
SKU: 10030 Category:

Product Description

The Double Side Telecentric Lens TDC-012-230 is suitable for sensors with an image format of 2/3 inch.

Magnification 0.12 x
Working Distance (WD) 230 mm
Depth of Field (DOF) 40.5 mm @ 40 μm
Resolution (Object Side) 41 μm
Image Format (max.) 2/3 inch
Working F-Number 7.3
Numerical Aperture (NA) 0.0082
Field of View (FOV) 73.33mm x 55mm @2/3″
Telecentric Type Double Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.04 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

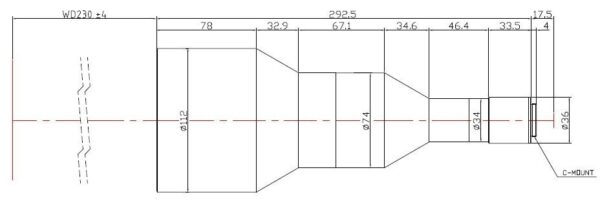

Drawing
