Lensagon TCHR-20-110C

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 2x, WD 110mm, F# 13, NA 0.07, DOF 260um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 10537 Category:

Product Description

The Object Side Telecentric Lens TCHR-20-110C is suitable for sensors with an image format of 2/3 inch.

Magnification 2.00 x
Working Distance (WD) 110.00 mm
Depth of Field (DOF) 260.00 μm @ 40.00 μm
Resolution (Object Side) 4.40 μm
Image Format (max.) 2/3 inch
Working F-Number 13.00
Numerical Aperture (NA) 0.07
Field of View (FOV) 4.4mm x 3.3mm @ 2/3
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

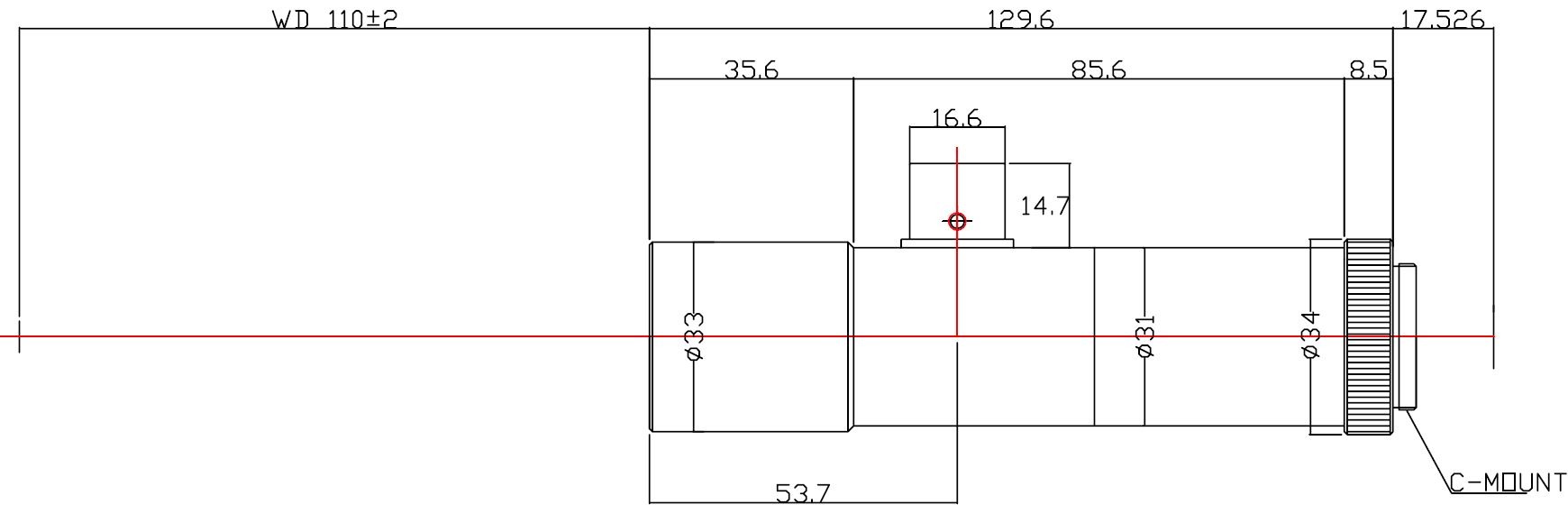

Drawing
