Lensagon TCHR-15-65C

High Res Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 1.5x, WD 65mm, F# 10.7, NA 0.07, DOF 380um, Opt.Dist. 0.07, Coaxial Version

 Compare
SKU: 10517 Category:

Product Description

The Object Side Telecentric Lens TCHR-15-65C is suitable for sensors with an image format of 1/2 inch.

Magnification1.5
MountC-Mount
Working F-Number10.7
Working Distance (WD)65 mm
Depth of Field (DOF)380 μm
Resolution (Object Side)4.8 μm
Numerical Aperture (NA)0.07
Image Format (max.)1/2 inch
Field of View (FOV)4.3mm x 3.2mm@1/2″ CCD
Lens TypeObject Side
Telecentricity0.022
Optical Distortion (max.)0.07 %
Special FeatureHigh Res
pdf

Additional Information

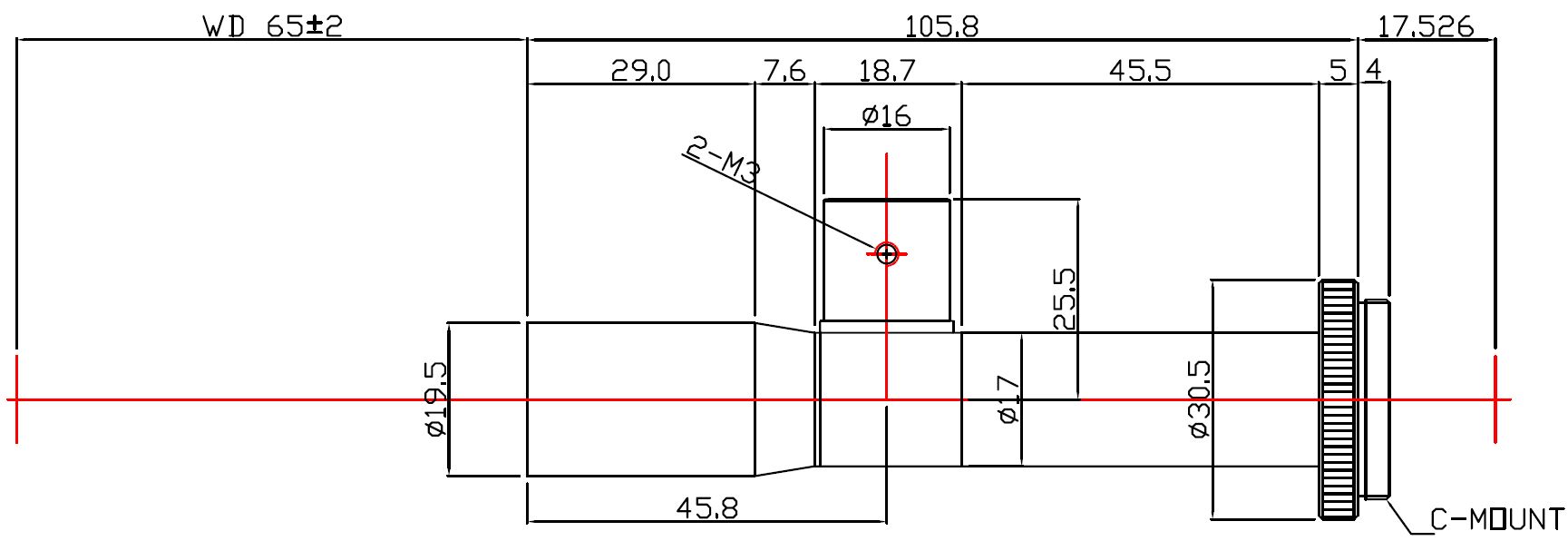

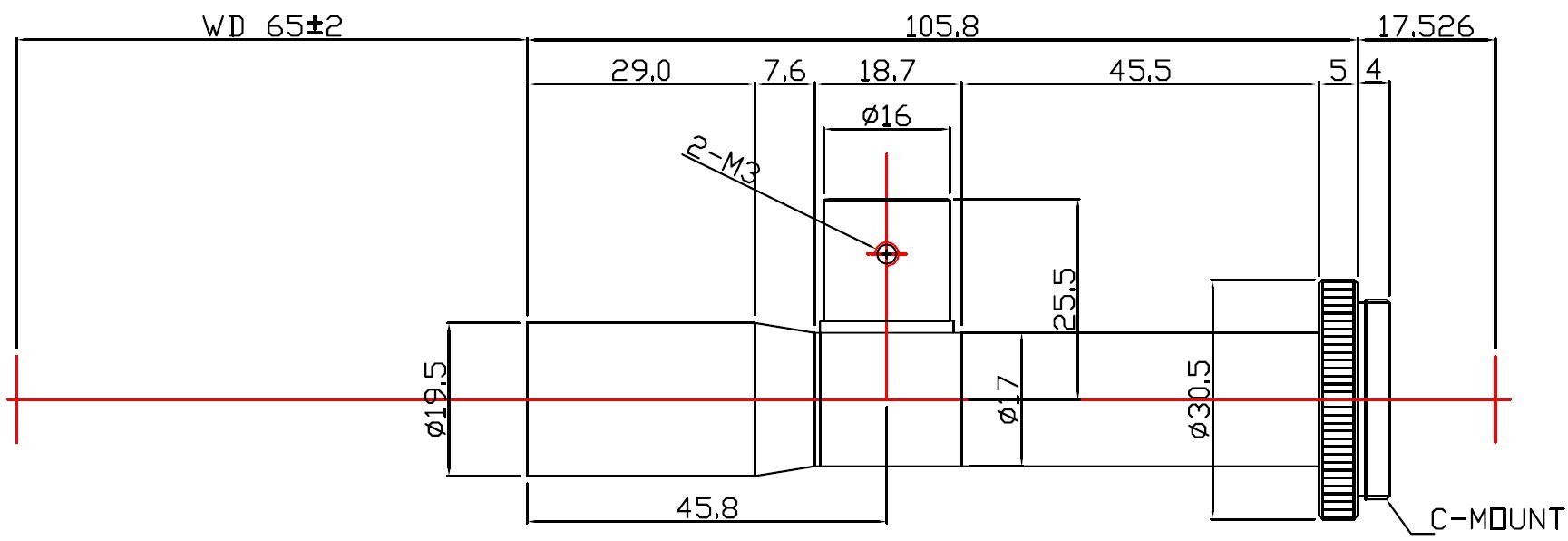

Technical Drawing:

Drawing
