Lensagon TCHR-120-65C

High Res Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 12x, WD 65mm, F# 37.3, NA 0.161, DOF 21um, Opt.Dist. 0.1, Coaxial Version

 Compare
SKU: 10508 Category:

Product Description

The Object Side Telecentric Lens TCHR-120-65C is suitable for sensors with an image format of 1/2 inch.

Magnification 12 x
Working Distance (WD) 65 mm
Depth of Field (DOF) 21 μm @ 40 μm
Resolution (Object Side) 2.1 μm
Image Format (max.) 1/2 inch
Working F-Number 37.3
Numerical Aperture (NA) 0.161
Field of View (FOV) 0.53mm x 0.4mm @ 1/2
Telecentric Type Object Side
Telecentricity 0.004 °
Optical Distortion (max.) 0.1 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

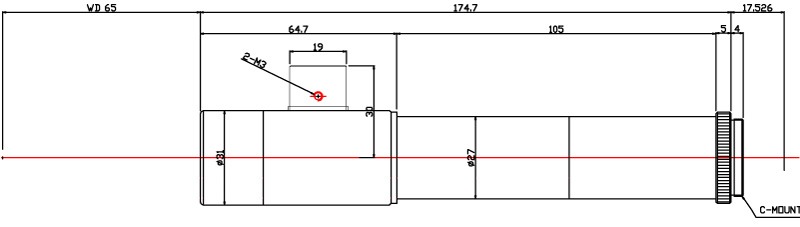

Drawing
