Lensagon TCHR-08-110

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.8x, WD 110mm, F# 13.3, NA 0.03, DOF 1650um, Opt.Dist. 0.14

 Compare
SKU: 10527 Category:

Product Description

The Object Side Telecentric Lens TCHR-08-110 is suitable for sensors with an image format of 2/3 inch.

Magnification 0.8 x
Working Distance (WD) 110 mm
Depth of Field (DOF) 1.65 mm @ 40 μm
Resolution (Object Side) 11.2 μm
Image Format (max.) 2/3 inch
Working F-Number 13.3
Numerical Aperture (NA) 0.03
Field of View (FOV) 11mm x 8mm @ 2/3
Telecentric Type Object Side
Telecentricity 0.017 °
Optical Distortion (max.) 0.14 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

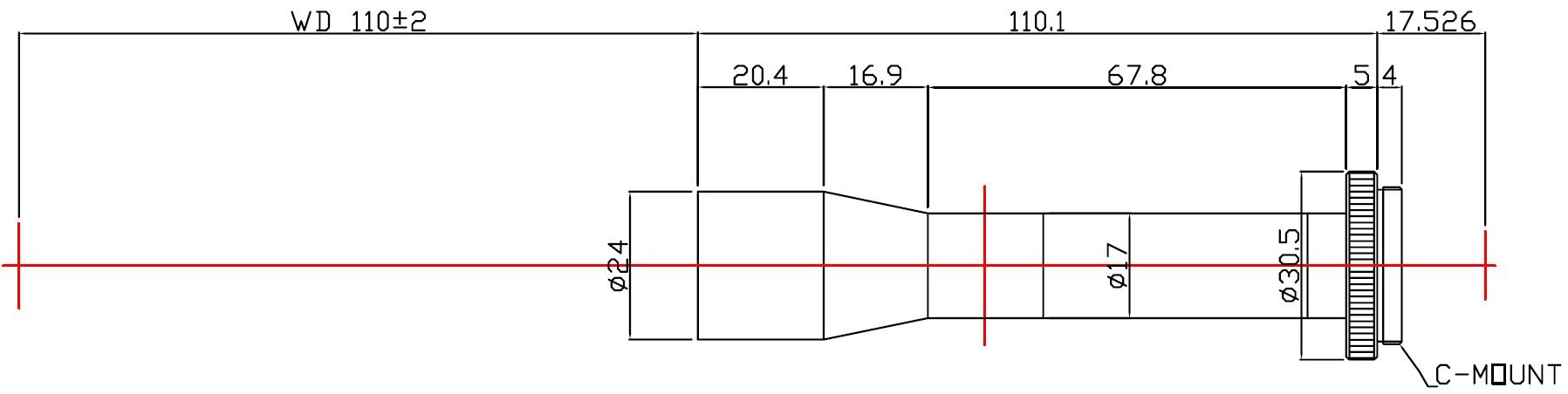

Drawing
