Lensagon TCHR-05-110C

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.5x, WD 110mm, F# 11.1, NA 0.0225, DOF 3500um, Opt.Dist. 0.15, Coaxial Version

 Compare
SKU: 10528 Category:

Product Description

The Object Side Telecentric Lens TCHR-05-110C is suitable for sensors with an image format of 2/3 inch.

Magnification 0.5 x
Working Distance (WD) 110 mm
Depth of Field (DOF) 3.5 mm @ 40 μm
Resolution (Object Side) 14.9 μm
Image Format (max.) 2/3 inch
Working F-Number 11.1
Numerical Aperture (NA) 0.0225
Field of View (FOV) 17.6mm x 13.2mm @ 2/3
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.15 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

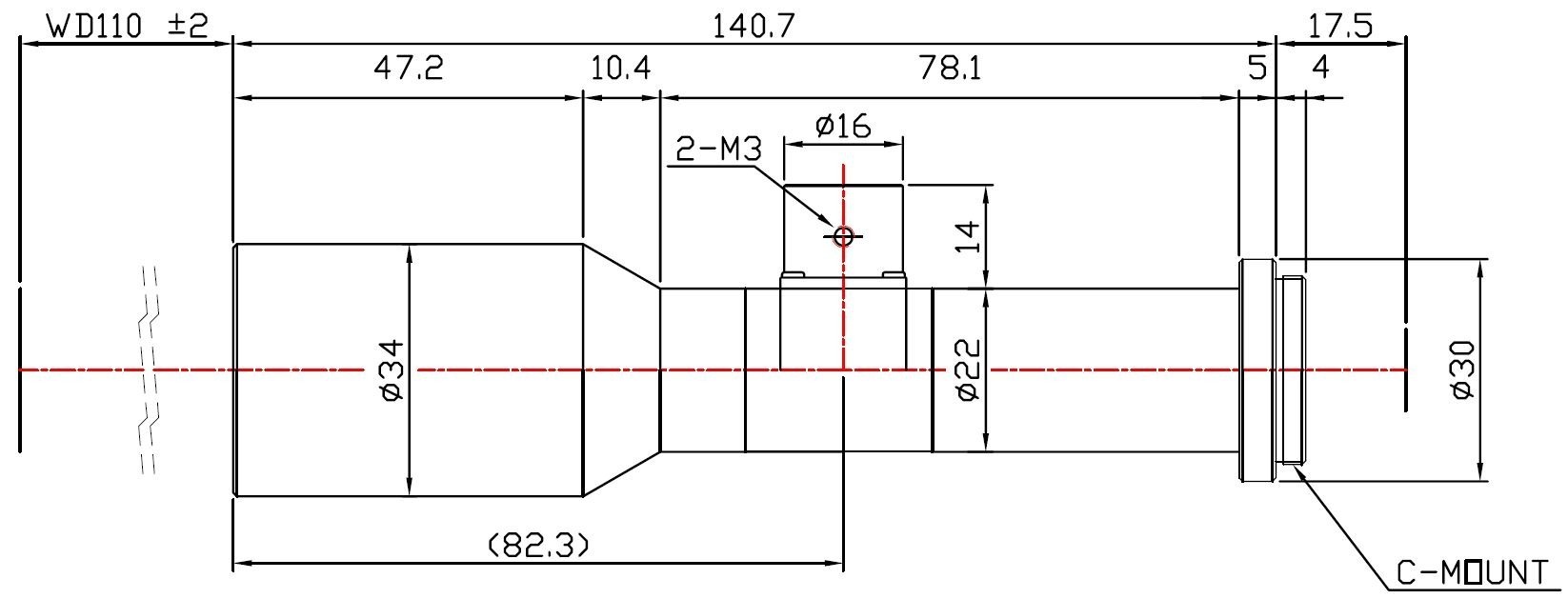

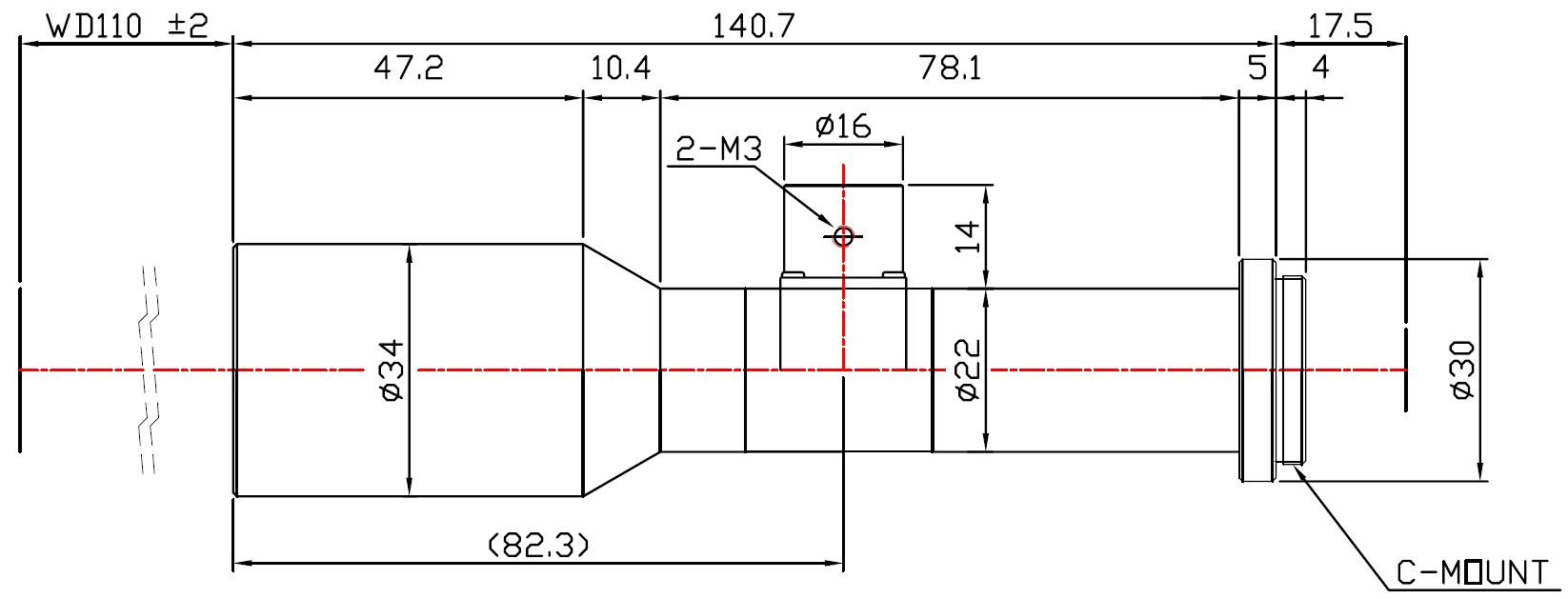

Drawing
