Lensagon TCHR-035-110-S12

High Res Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.35x, WD 110mm, F# 11, NA 0.016, DOF 7.1um, Opt.Dist. 0.05

 Compare
SKU: 10461 Category:

Product Description

The Object Side Telecentric Lens TCHR-035-110-S12 is suitable for sensors with an image format of 1/2 inch.

Magnification 0.35 x
Working Distance (WD) 110 mm
Depth of Field (DOF) 7.1 μm @ 40 μm
Resolution (Object Side) 21.1 μm
Image Format (max.) 1/2 inch
Working F-Number 11
Numerical Aperture (NA) 0.016
Field of View (FOV) 17.6mm x 12.8mm @ 1/2″
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

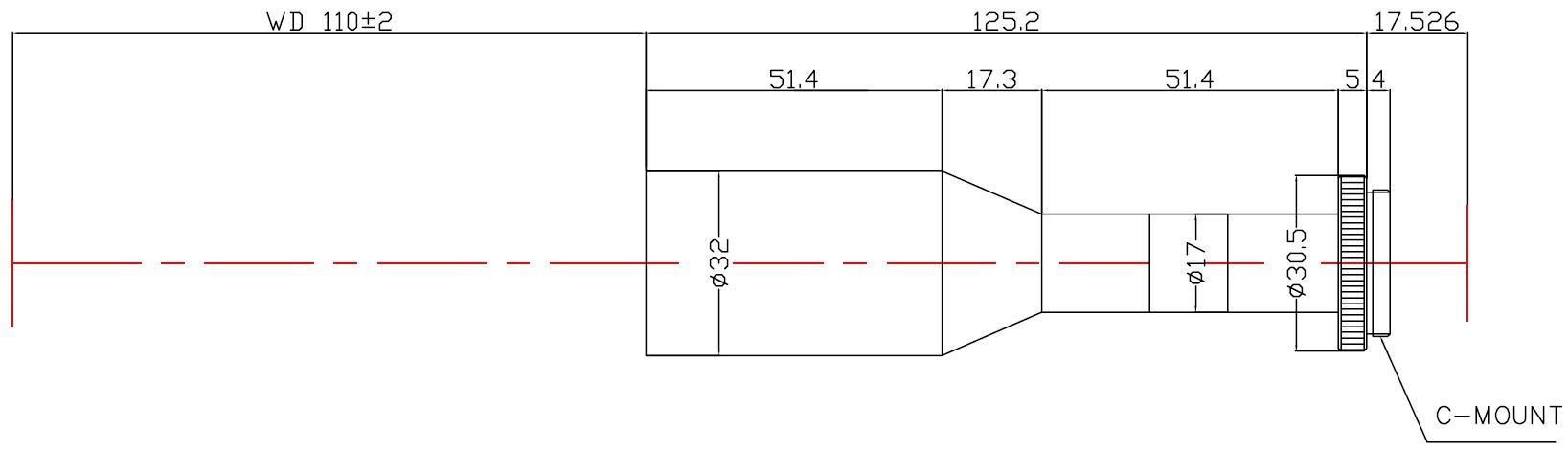

Drawing
