Lensagon TC5M-20-65C

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 2x, WD 65mm, F# 8.3, NA 0.12, DOF 83um, Opt.Dist. 0.02, Coaxial Version

 Compare
SKU: 00928 Category:

Product Description

The Object Side Telecentric Lens TC5M-20-65C is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 2 x
Mount C-Mount
Working F-Number 8.3
Working Distance (WD) 65 mm
Depth of Field (DOF) 83 μm
Resolution (Object Side) 2.8 μm
Numerical Aperture (NA) 0.12
Image Format (max.) 2/3 inch
Megapixel (max.) 5 MP
Field of View (FOV) 4.2mm x 3.6mm @5M CCD
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.02 %
Special Feature Super High Res
pdf

Additional Information

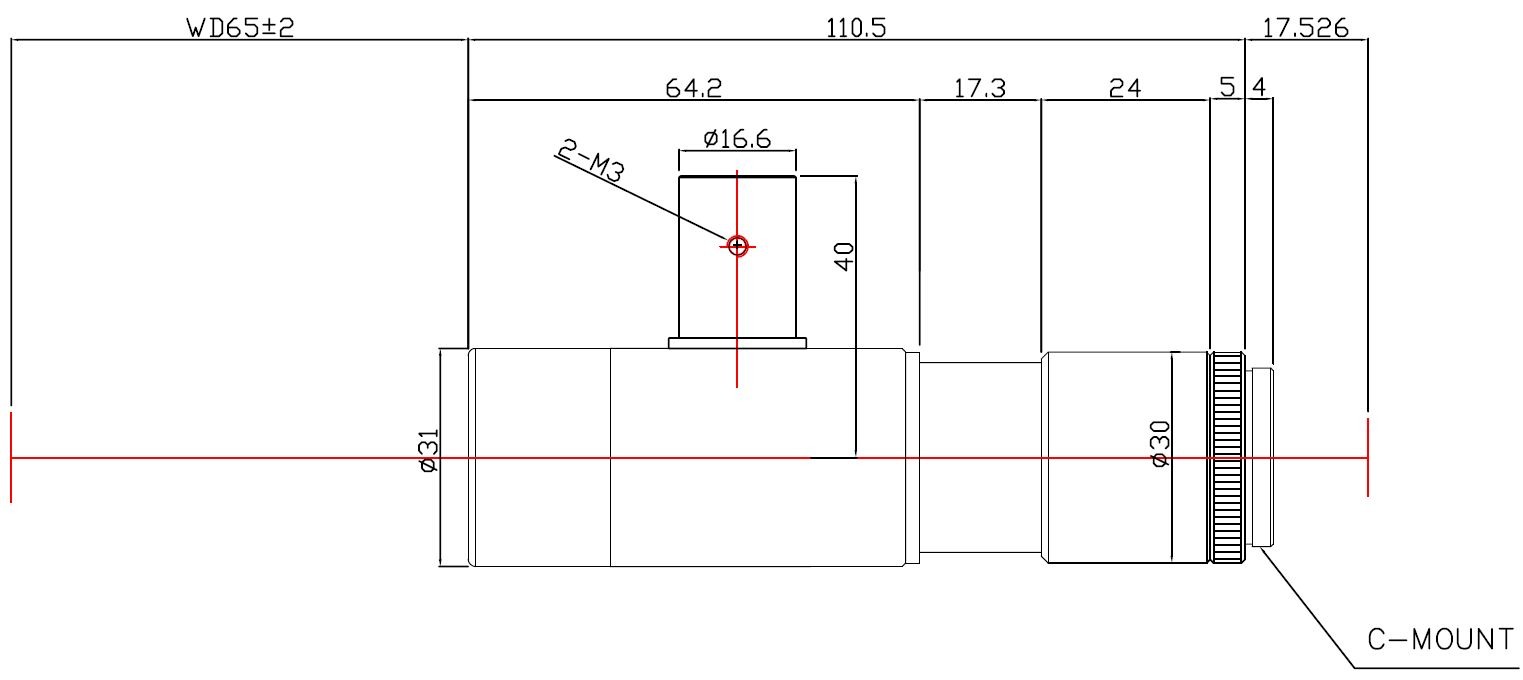

Technical Drawing:

Drawing
