Lensagon T25M-045-270I-M58

Super High Res Object Side Telecentric Lens for 25M (32mm) sensor, Magnification: 0.45x, WD 270mm, F# 6.25, NA 0.036, DOF 1.11um, Opt.Dist. 0.01

 Compare
SKU: 11303 Category:

Product Description

The Object Side Telecentric Lens T25M-045-270I-M58 is suitable for sensors up to 25 megapixel and with an image format of 25M (32mm).

Magnification 0.45 x
Working Distance (WD) 270 mm
Depth of Field (DOF) 1.11 μm
Resolution (Object Side) 9.31 μm
Image Format (max.) 25M (32mm)
Megapixel (max.) 25 MP
Working F-Number 6.25
Numerical Aperture (NA) 0.036
Field of View (FOV) 51.5mm x 51.5mm
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.01 %
Mount M58 *
Special Feature Super High Res

* Other mounts are available on request.

pdf

Additional Information

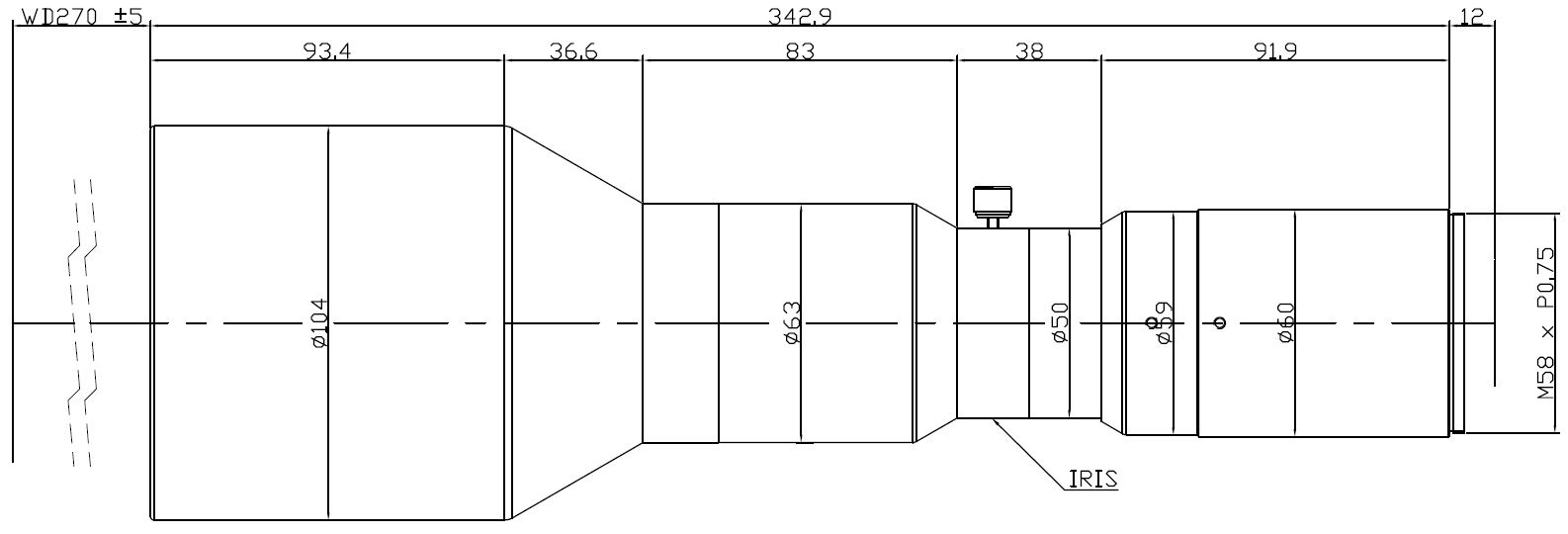

Drawing
