Lensagon MF8M-043-261
Macro Lens for 8M (23mm) sensor, Magnification: 0.43x, WD 261mm, F# 5, NA 0.043, DOF 1200um, Opt.Dist. 0.01
Product Description
The Macro Lens MF8M-043-261 is suitable for sensors up to 8 megapixel and with an image format of 8M (23mm).
Magnification | 0.43 x |
---|---|
Mount | F-Mount * |
Working F-Number | 5.00 |
Working Distance (WD) | 261.00 mm |
Depth of Field (DOF) | 1.2 mm |
Resolution (Object Side) | 7.80 μm |
Numerical Aperture (NA) | 0.043 |
Image Format (max.) | 8M (23mm) |
Megapixel (max.) | 8.00 MP |
Field of View (FOV) | 42.13mm x 31.6mm@8M CCD |
Telecentric Type | Macro |
Optical Distortion (max.) | 0.01 % |
* Other mounts are available on request.
![pdf](http://www.lensation.de/pdf/pdf.jpg)
Additional Information

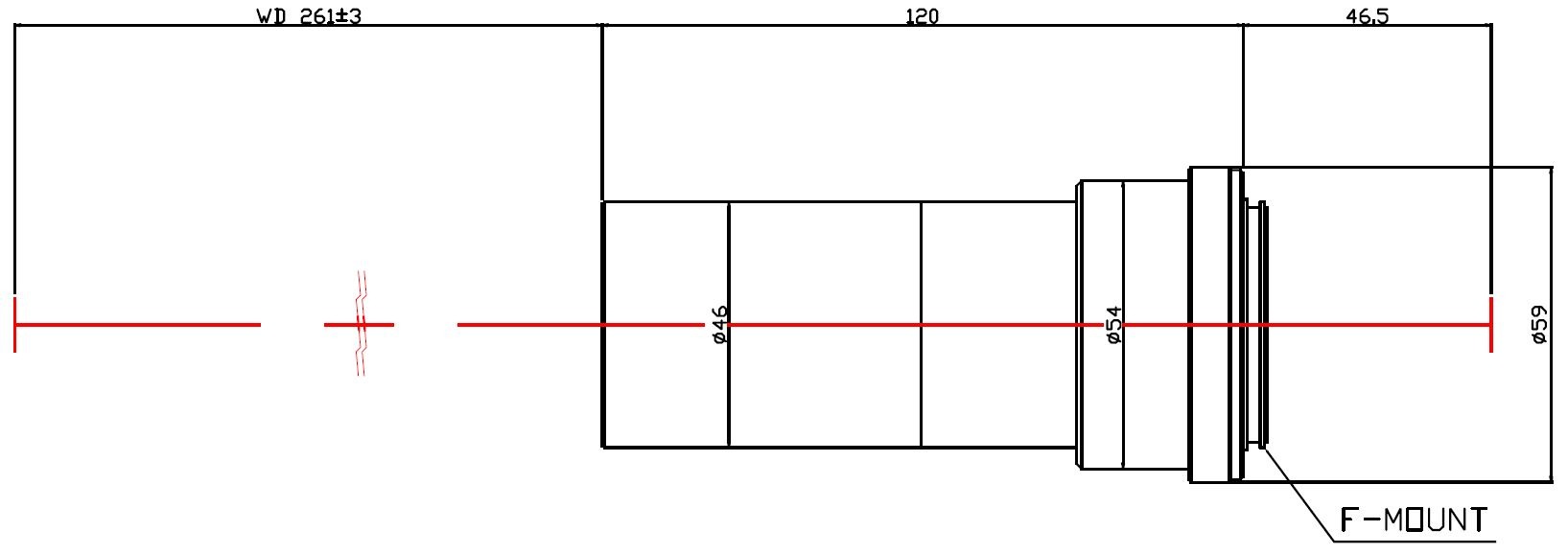

![Drawing](https://www.lensation.de/drawings/MF8M-043-261_DW1.jpg)
