Lensagon MD12M-054-235I

Lensagon MD12M-054-235I

Macro Lens for 12M (28mm) sensor, Magnification: 0.54x, WD 235mm, F# 6.3, NA 0.043, DOF 1300um, Opt.Dist. 0.05

 Compare
SKU: 10969 Category:

Product Description

The Macro Lens MD12M-054-235I is suitable for sensors up to 12 megapixel and with an image format of 12M (28mm).

Magnification 0.54 x
Mount M48 *
Working F-Number 6.3
Working Distance (WD) 235 mm
Depth of Field (DOF) 1.3 mm
Resolution (Object Side) 7.8 μm
Numerical Aperture (NA) 0.043
Image Format (max.) 12M (28mm)
Megapixel (max.) 12 MP
Field of View (FOV) 41.7mm x 31.27mm@12M CCD
Telecentric Type Macro
Optical Distortion (max.) 0.05 %

* Other mounts are available on request.

pdf

Additional Information

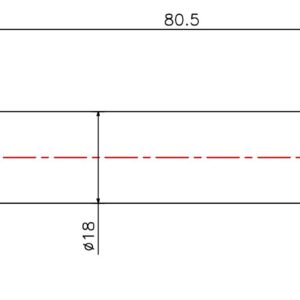

Drawing
