Lensagon CY2514

Lensagon CY2514

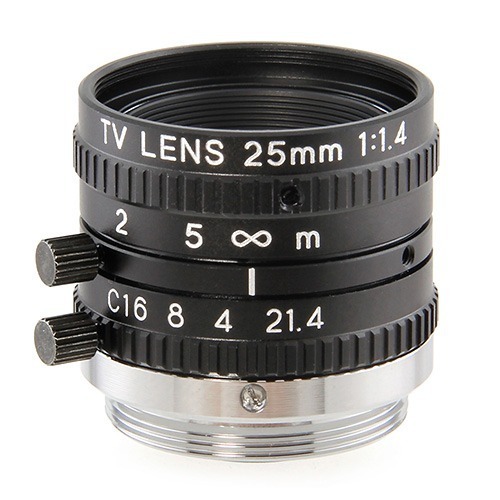

0.4 Megapixel C-Mount lens for 2/3 inch sensors, F1.4, f=25mm

 Compare
SKU: 00181 Category:

Product Description

The C-Mount lens Lensagon CY2514 is suitable for sensors below 1 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 25 mm
Aperture (f#) 1.4
MOD 0.5 m
Back Focal Length 11.94
Angle of View (D) 24.81°
Megapixel 0.4 MP
IR Cut Filter No
TV Distortion -0.1
Image Circle 11 mm
Weight 43 g
Iris manual-lock
Focus manual-lock
Filter Size M27 P=0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
