C3M3520V2

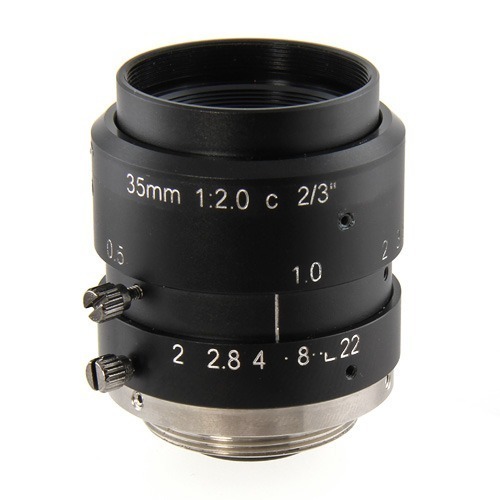

Lensagon C3M3520V2

3 Megapixel C-Mount lens for 2/3 inch sensors, F2, f=35mm

 Compare
SKU: 10324 Category:

Product Description

The C-Mount lens Lensagon C3M3520V2 is suitable for common sensors up to 3 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 35 mm
Aperture (f#) 2
MOD 0.35 m
Back Focal Length 10.14
Angle of View (D) 17°
Angle of View (H) 14°
Angle of View (V) 10°
Megapixel 3 MP
IR Cut Filter No
Image Circle 11 mm
Iris manual
Focus manual
pdf

Additional Information

Technical Drawing:

Drawing
