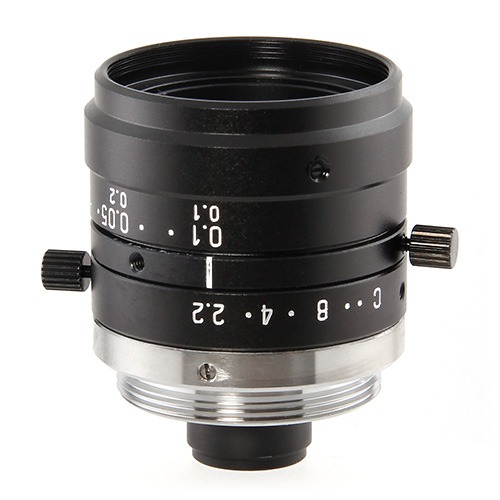

Lensagon CMFA1022ND

Lensagon CMFA1022ND

1 Megapixel C-Mount lens for 1/2 inch sensors, F2.2, f=10mm

 Compare
SKU: 00031 Category:

Product Description

The C-Mount lens Lensagon CMFA1022ND is suitable for common sensors up to 1 megapixel with an image format of 1/2 inch.

Mount C-Mount
Sensor 1/2 inch
Focal Length 10 mm
Aperture (f#) 2.2
MOD 0.1 m
Angle of View (D) 43.6°
Megapixel 1 MP
IR Correction No
IR Cut Filter No
TV Distortion -0.08
Image Circle 8 mm
Weight 51 g
Iris manual-lock
Focus manual-lock
Filter Size M27 P=0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
