Lensagon CY10035

Lensagon CY10035

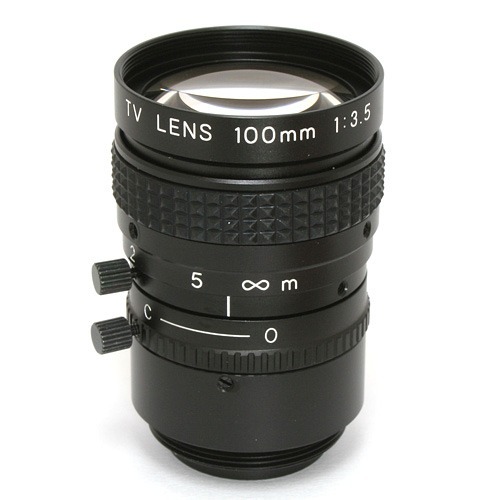

1 Megapixel C-Mount lens for 2/3 inch sensors, F3.5, f=100mm

 Compare
SKU: 00185 Category:

Product Description

The C-Mount lens Lensagon CY10035 is suitable for common sensors up to 1 megapixel with an image format of 2/3 inch.

Mount C-Mount
Sensor 2/3 inch
Focal Length 100 mm
Aperture (f#) 3.5
MOD 1 m
Angle of View (D) 6.3°
Megapixel 1 MP
IR Cut Filter No
TV Distortion 0.3
Image Circle 11 mm
Weight 62 g
Iris manual-lock
Focus manual-lock
Filter Size M30.5 P=0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
