Lensagon CMFA0420ND

Lensagon CMFA0420ND

1 Megapixel C-Mount lens for 1/2 inch sensors, F2, f=4.16mm

 Compare
SKU: 00067 Category:

Product Description

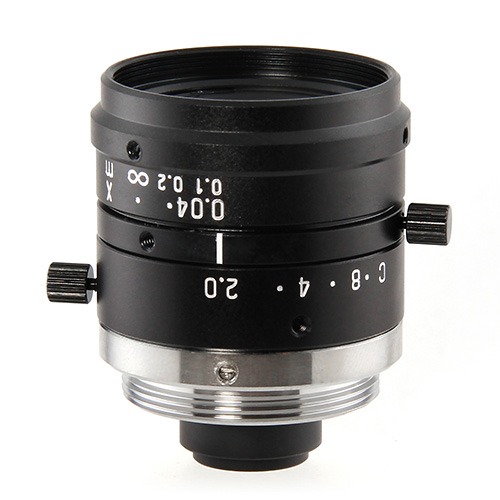

The C-Mount lens Lensagon CMFA0420ND is suitable for common sensors up to 1 megapixel with an image format of 1/2 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1/2 inch
Focal Length 4.16 mm
Aperture (f#) 2
MOD 0.1 m
Angle of View (D) 90°
Megapixel 1 MP
IR Correction No
IR Cut Filter No
TV Distortion 0.91
Image Circle 8 mm
Weight 56 g
Iris manual
Focus fixed
Filter Size M27 x P0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
