Lensagon CMFA3020ND

Lensagon CMFA3020ND

1 Megapixel C-Mount lens for 2/3 inch sensors, F2, f=30mm

 Compare
SKU: 00070 Category:

Product Description

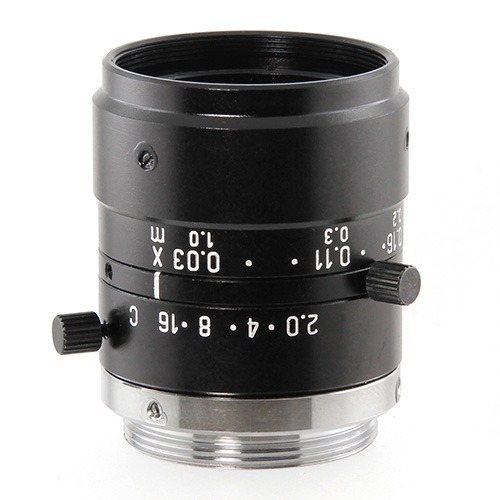

The C-Mount lens Lensagon CMFA3020ND is suitable for common sensors up to 1 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 30 mm
Aperture (f#) 2
MOD 0.2 m
max. WD 1
Angle of View (D) 20.78°
Megapixel (max.) 1 MP
IR Correction No
IR Cut Filter No
TV Distortion -0.02
Image Circle 11 mm
Weight 57 g
Iris manual-lock
Focus manual-lock
Filter M27 P=0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
