C3M1216V2

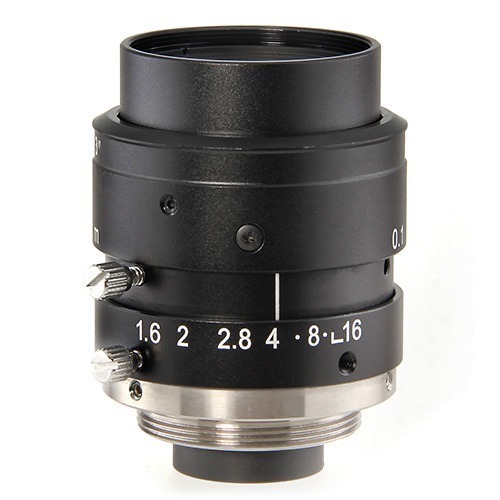

Lensagon C3M1216V2

3 Megapixel C-Mount lens for 2/3 inch sensors, F1.6, f=12mm

 Compare
SKU: 10327 Category:

Product Description

The C-Mount lens Lensagon C3M1216V2 is suitable for common sensors up to 3 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 12 mm
Aperture (f#) 1.6
MOD 0.1 m
Back Focal Length 8.06
Angle of View (D) 48°
Angle of View (H) 39°
Angle of View (V) 30°
Megapixel 3 MP
IR Cut Filter No
TV Distortion -0.21
Image Circle 11 mm
Weight 95.4 g
Iris manual
Focus manual
pdf

Additional Information

Technical Drawing:

Drawing
